D321NRB Schneider Electric Industrial Automation Components

D321NRB on Powermatic Associates
Schneider Electric

Part#:D321NRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

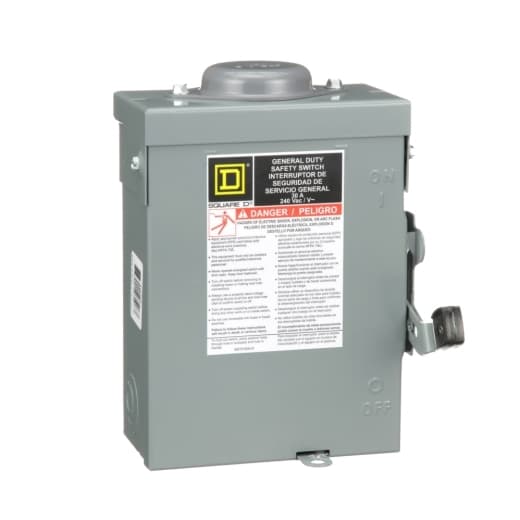

Schneider Electric - D321NRB

Product Details

  • Product
    Single Throw Safety Switch
  • Device Application
    Residential
  • Current Rating
    30 A
  • Electrical Connection
    Lugs
  • Voltage Rating
    240 V AC
  • Duty Rating
    General duty
  • Wiring Configuration
    4-wire (3PH + G)
  • Number Of Poles
    3
  • Enclosure Rating NEMA
    NEMA 3R
  • Tightening Torque
    30 lbf.in (3.39 N.m) 0.00…0.02 in² (2.08…13.3 mm²) (AWG 14...AWG 6)
  • Mounting Type
    Surface
  • Phase
    3 phase
  • Height
    9.63 in (244.60 mm)
  • Short Circuit Current Rating
    100 kA maximum depending on fuse H, K or R
  • Net Weight
    19.84 lb(US) (9 kg)
  • Disconnect Type
    Fusible disconnect switch
  • Factory Installed Neutral
    Neutral (factory installed)
  • Width
    7.75 in (196.85 mm)
  • Fuse Type
    H, K or R
  • Depth
    3.75 in (95.25 mm)
  • Wire Size
    AWG 14...AWG 6 copper AWG 12...AWG 6 aluminium
  • Maximum Horse Power Rating
    1.5 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6 3 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6 3 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52 7.5 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D321NRB on Powermatic Associates is $293.00. Order now.
