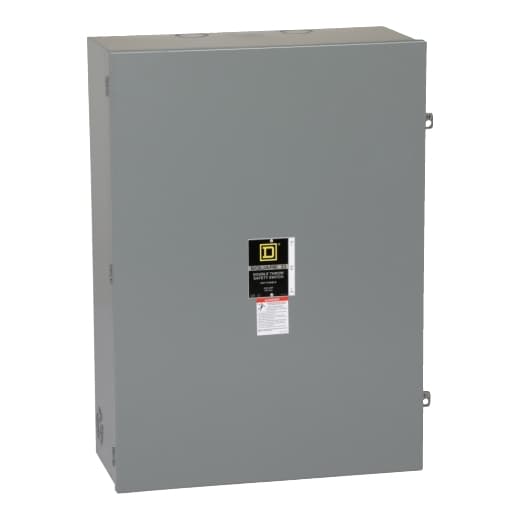

DTU324N Schneider Electric Industrial Automation Components

DTU324N on Powermatic Associates
Schneider Electric

Part#:DTU324N

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - DTU324N

Product Details

  • Number Of Poles
    3
  • Tightening Torque
    340 lbf.in (38.41 N.m) (AWG 6...300 kcmil)
  • Voltage Rating
    240 V AC
  • Disconnect Type
    Non-fusible disconnect switch
  • Height
    32.5 in (825.50 mm)
  • Mounting Type
    Surface
  • Duty Rating
    General duty
  • Maximum Horse Power Rating
    15 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6
  • Depth
    10.63 in (270.00 mm)
  • Current Rating
    200 A
  • Factory Installed Neutral
    Neutral (factory installed)
  • Net Weight
    73.99 lb(US) (33.56 kg)
  • Wire Size
    AWG 6...300 kcmil copper or aluminium
  • Enclosure Rating
    NEMA 1
  • Product
    Double Throw Safety Switch
  • Width
    26.25 in (666.75 mm)
  • Fuse Type
    H or K R, J or T
  • Short-Circuit Current
    10 kA H or K 100 kA R, J or T

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DTU324N on Powermatic Associates is $2,798.00. Order now.
