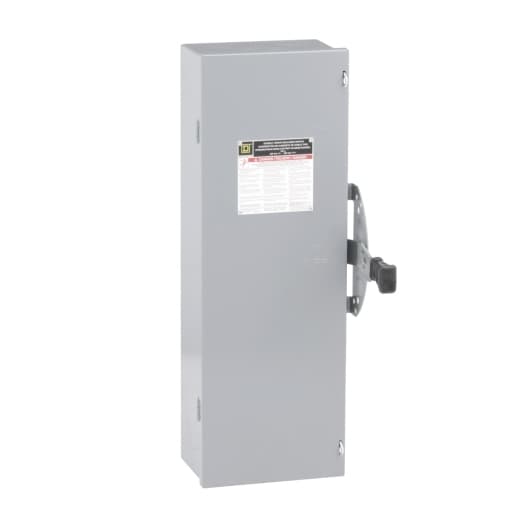

DTU363 Schneider Electric Industrial Automation Components

Product Details

• Disconnect Type
  Non-fusible disconnect switch
• Mounting Type
  Surface
• Factory Installed Neutral
  None
• Depth
  6.93 in (176.02 mm)
• Enclosure Rating
  NEMA 1
• Number Of Poles
  3
• Height
  29.94 in (760.48 mm)
• Net Weight
  39.00 lb(US) (17.69 kg)
• Duty Rating
  General duty
• Width
  11.96 in (303.78 mm)
• Product
  Double Throw Safety Switch
• Current Rating
  100 A
• Fuse Type
  H or K R, J or T
• Short-Circuit Current
  10 kA H or K 200 kA R, J or T
• Voltage Rating
  600 V AC 600 V DC
• Wire Size
  AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper
• Maximum Horse Power Rating
  20 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 240.6 40 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 40 hp 480 V at AC 50-60 Hz for 1 phase conforming to NEC 240.6 75 hp 480 V at AC 50-60 Hz for 3 phase conforming
• Tightening Torque
  35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.26 mm²) (AWG 14...AWG 1/0) 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8) 45 lbf.in (5.08 N.m) 0.02…0.08 in² (13.30…53.48 mm²) (AWG 8) 50 lbf.in (5.65 N.m) 0.04…0.08 in² (26.67…53.48 mm²) (AWG 6.
