EZM3400CB Schneider Electric Industrial Automation Components

EZM3400CB on Powermatic Associates
Schneider Electric

Part#:EZM3400CB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

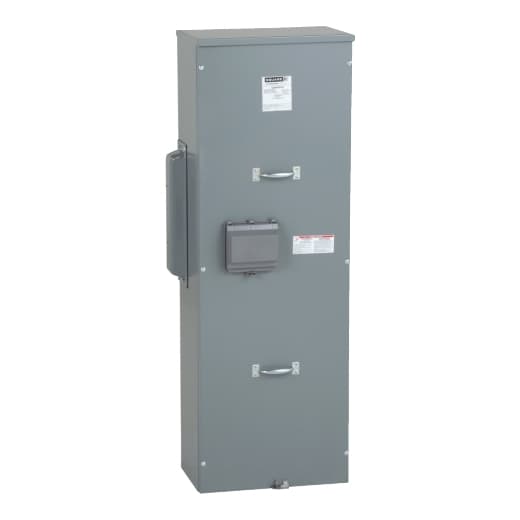

Square D by Schneider Electric EZM3400CB is a meter center main unit designed for surface mounting. It features a steel enclosure and aluminium busbar, ensuring durability and conductivity. With a degree of protection rated at NEMA 3R, it is suitable for both indoor and rainproof applications. The dimensions of this unit are H1371mm x W474mm x D292mm (H53.97" x W18.66" x D11.5"), making it a compact solution for metering needs. It operates at a rated voltage of 208Y/120Vac and 240/120Vac (Delta) and supports a three-phase (3PH-4W) network. The EZM3400CB is pre-equipped with an incoming breaker and has a rated current of 400A for both the main unit and busbar. It accommodates a wide range of wire sizes, from 1 x 6AWG to 300kcmil for aluminium/copper lugs (ground) and various configurations for line and neutral connections, ensuring flexibility in installation and use.

Product Details

  • Product Or Component Type
    Meter center main unit
  • Height
    53.97 in (1370.84 mm)
  • Main Rated Current
    400 A
  • Enclosure Material
    Steel
  • Range Of Product
    EZ meter-pak
  • Width
    18.66 in (473.96 mm)
  • Wiring Configuration
    4-wire
  • Material
    Aluminium busbar
  • Depth
    11.50 in (292.10 mm)
  • Bus Rated Current
    400 A
  • Main Type
    Main Circuit Breaker
  • Device Mounting
    Surface
  • Service Feed Location
    UG OH
  • [Ue] Rated Operational Voltage
    208Y/120 V AC 240/120 V delta AC
  • Included Items
    Closing plate Circuit-breaker3P 400 A 65 kA
  • Number Of Phases
    3 phase in 3 phase out
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 1 AWG 1...600 kcmil aluminium/copper) line Lugs 2 AWG 1...250 kcmil aluminium/copper) line Lugs 1 AWG 1...600 kcmil aluminium/copper) neutral Lugs 2 AWG 1...250 kcmil aluminium/cop

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM3400CB on Powermatic Associates is $6,620.00. Order now.
