Part#:EZM3600TB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

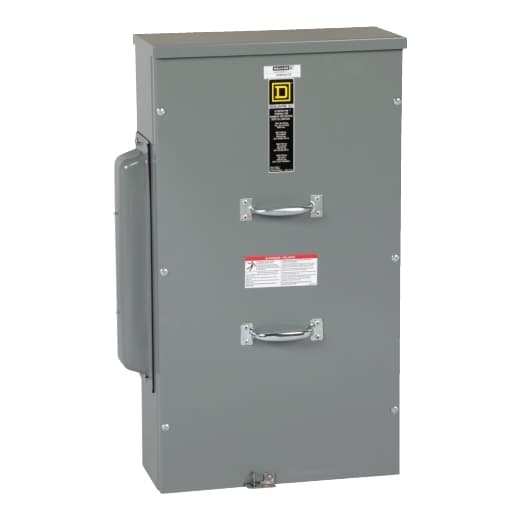

Square D by Schneider Electric EZM3600TB is a meter center main unit designed for surface mounting. It features a steel enclosure and aluminium busbar, offering a degree of protection rated at NEMA 3R. The dimensions of this unit are H774mm x W436mm x D180mm (H30.46" x W17.15" x D7.09"). It operates at a rated voltage of 208Y/120Vac and 240/120Vac (Delta) and is suitable for three-phase (3PH-4W) networks. The EZM3600TB is designed for indoor or rainproof metering applications, supporting a main rated current of 600A and a busbar rated current of 800A. It accommodates a cross-section of 1 x 6AWG...300kcmil aluminium/copper lugs for ground connections, 2 x 1/0AWG...750kcmil aluminium/copper lugs for line connections, 4 x 1/0AWG...300kcmil aluminium/copper lugs for additional line connections, and similarly, 2 x 1/0AWG...750kcmil and 4 x 1/0AWG...300kcmil aluminium/copper lugs for neutral connections.

Product Details

  • Material
    Aluminium busbar
  • Wiring Configuration
    4-wire
  • Depth
    7.09 in (180.09 mm)
  • Main Rated Current
    600 A
  • Width
    17.15 in (435.61 mm)
  • Range Of Product
    EZ meter-pak
  • Device Mounting
    Surface
  • Enclosure Material
    Steel
  • Height
    30.46 in (773.68 mm)
  • Product Or Component Type
    Meter center main unit
  • Bus Rated Current
    800 A
  • Main Type
    Main Lugs
  • Included Items
    Box
  • [Ue] Rated Operational Voltage
    208Y/120 V AC 240/120 V delta AC
  • Number Of Phases
    3 phase in 3 phase out
  • Service Feed Location
    UG OH
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 2 AWG 1/0...750 kcmil aluminium/copper) line Lugs 4 AWG 1/0...300 kcmil aluminium/copper) line Lugs 2 AWG 1/0...750 kcmil aluminium/copper) neutral Lugs 4 AWG 1/0...300 kcmil alumi

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM3600TB on Powermatic Associates is $1,196.00. Order now.
