GV2ME106 Schneider Electric Industrial Automation Components

GV2ME106 on Powermatic Associates
Schneider Electric

Part#:GV2ME106

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

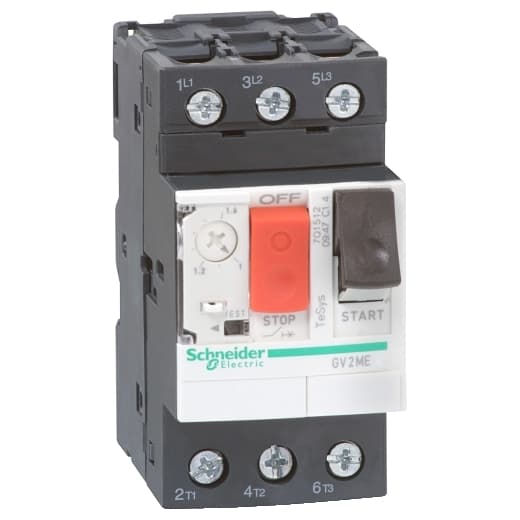

Schneider Electric GV2ME106 is a Motor Protection Circuit Breaker (MPCB) within the GV2ME sub-range, designed for thermal-magnetic motor protection and manual motor starting. It features 3 poles and offers protection functions against short-circuit and thermal overload. The rated current for this device is between 4 - 6.3 A, with a rated insulation voltage (Ui) of 690 V. It is designed for DIN rail mounting and has a net width of 45 mm. The operating mode is via a push-button, with protection settings for short-circuit pickup current fixed at 78A. The GV2ME106 has a rated impulse voltage (Uimp) of 6 kV and supports rated active power of 2.2 kW at 400/415Vac, 3 kW at 500Vac, and 4 kW at 690Vac. Its trip current rating is 6.3 AT, with a frame current rating of 32 AF. The mechanical durability of the device is rated at 100,000 operations without load, and its electrical durability with load (440Vac; AC-3; In/2) is also 100,000 operations. Terminal connections are made via lug-ring terminals. The rated voltage (AC) phase-to-phase is 690 V, with all 3 poles protected. The minimum and maximum current ratings are 4 A and 6.3 A, respectively, and the trip unit type is thermal-magnetic. It falls under the utilisation category A AC-3.

Product Details

  • Electrical Durability
    100000 cycles AC-3 440 V
  • Suitability For Isolation
    Yes conforming to IEC 60947-1
  • Device Application
    Motor
  • Product Or Component Type
    Circuit breaker
  • Control Type
    Push-button
  • Depth
    3.09 in (78.5 mm)
  • Product Name
    TeSys GV2
  • Mechanical Durability
    100000 cycles
  • [Ith] Conventional Free Air Thermal Current
    6.3 A IEC 60947-4-1
  • Height
    3.50 in (89 mm)
  • Range
    TeSys
  • Line Rated Current
    6.3 A
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-2
  • Net Weight
    0.57 lb(US) (0.26 kg)
  • Poles Description
    3P
  • Network Frequency
    50/60 Hz IEC 60947-4-1
  • [Ue] Rated Operational Voltage
    690 V AC 50/60 Hz conforming to IEC 60947-2
  • Maximum Operating Rate
    25 cyc/h
  • Trip Unit Technology
    Thermal-magnetic
  • Magnetic Tripping Current
    78 A
  • Width
    1.77 in (45 mm)
  • Rated Duty
    Continuous IEC 60947-4-1
  • Device Short Name
    GV2ME
  • Operating Position
    Any position
  • Power Dissipation Per Pole
    2.5 W
  • Network Type
    AC
  • [Ui] Rated Insulation Voltage
    690 V AC 50/60 Hz IEC 60947-2
  • Thermal Protection Adjustment Range
    4…6.3 A
  • Phase Failure Sensitivity
    Yes IEC 60947-4-1
  • Connection Pitch
    0.53 in (13.5 mm) without spreader
  • Fixing Mode
    35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
  • Utilisation Category
    AC-3 IEC 60947-4-1 Category A conforming to IEC 60947-2
  • Tightening Torque
    15.05 lbf.in (1.7 N.m) lugs-ring terminals M4 15.05 lbf.in (1.7 N.m) bars M4
  • Motor Power Kw
    2.2 kW 400/415 V AC 50/60 Hz 3 kW 500 V AC 50/60 Hz 4 kW 690 V AC 50/60 Hz
  • [Ics] Rated Service Short-Circuit Breaking Capacity
    100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 75 % 690 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity
    100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of GV2ME106 on Powermatic Associates is $187.12. Order now.
