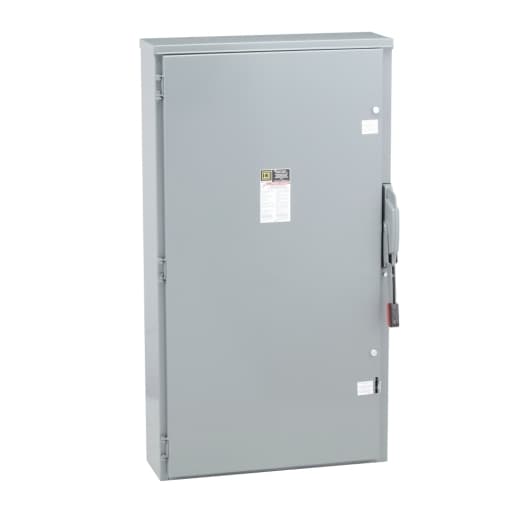

H325NR Schneider Electric Industrial Automation Components

H325NR on Powermatic Associates
Schneider Electric

Part#:H325NR

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - H325NR

Product Details

  • Device Application
    Heavy application
  • Width
    27.88 in (708.15 mm)
  • Disconnect Type
    Fusible disconnect
  • Phase
    3 phase
  • Wiring Configuration
    4-wire (3PH + G)
  • Tightening Torque
    550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil)
  • Factory Installed Neutral
    Neutral (factory installed)
  • Number Of Poles
    3
  • Product
    Single Throw Safety Switch
  • Mounting Type
    Surface
  • Net Weight
    192.02 lb(US) (87.1 kg)
  • Duty Rating
    Heavy duty
  • Depth
    10.13 in (257.30 mm)
  • Current Rating
    400 A
  • Electrical Connection
    Lugs
  • Enclosure Rating
    NEMA 3R galvannealed steel
  • Wire Size
    AWG 1/0...750 kcmil copper or aluminium
  • Height
    50.31 in (1277.87 mm)
  • Voltage Rating
    250 V DC 240 V AC
  • Fuse Type
    H or K R, J or L
  • Short Circuit Current Rating
    10 kA H or K 200 kA R, J or L
  • Maximum Horse Power Rating
    50 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 125 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 50 hp 250 V at DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of H325NR on Powermatic Associates is $4,322.00. Order now.

H325NR Related Documents

Instruction Sheet-1631033494961.pdfProduct Datasheet-1631033494955.pdfCatalog-1631033494959.pdf
