Part#:HDL26050

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

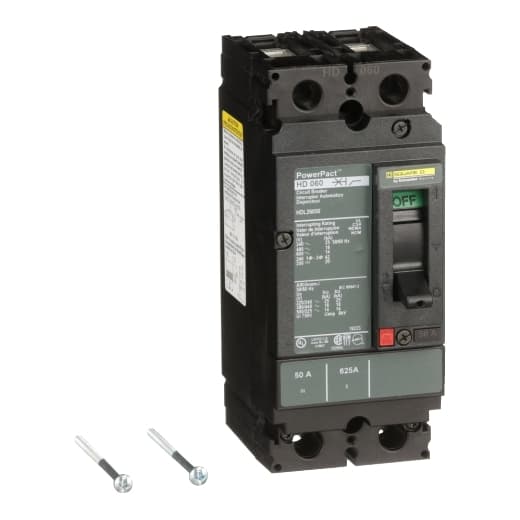

Square D by Schneider Electric HDL26050 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDL sub-range, designed with a PowerPact H-Frame 150 TMD 2P 50A 600Vac/250Vdc 14kA with lugs at 80% rating for both load and line sides. This 2-pole circuit breaker offers thermal protection for overload scenarios and magnetic protection for short-circuits, featuring a rated current of 50A and a rated insulation voltage of 750V. It supports a rated voltage of 600Vac and 600Y/347Vac for AC, and 250Vdc for DC, with a mounting mode that allows individual unit mount on a plate. The device measures 163mm in height, 104mm in width, and 86mm in depth, enclosed in an IP40 degree of protection. It operates manually via a toggle and has fixed protection settings for over-current at 50A, short-circuit hold current at 400A, and short-circuit trip current at 850A. The rated operating voltage stands at 690V, with a rated impulse voltage of 8kV. Its trip current rating is 50 AT, with a frame current rating of 150 AF, and it has a short circuit breaking rating that varies with voltage, up to 25kA at 240Vac according to UL489 standards. The trip unit is a fixed thermal-magnetic type without a display, categorized under utilisation category A.

Product Details

  • Magnetic Hold Current
    400 A
  • Continuous Current Rating
    80 %
  • Product Or Component Type
    Circuit breaker
  • Height
    6.4 in (162.56 mm)
  • Line Rated Current
    50 A
  • Range Of Product
    PowerPact H
  • Breaking Capacity Code
    D
  • Depth
    4.36 in (110.74 mm)
  • Mounting Mode
    Unit mount
  • Width
    2.74 in (69.60 mm)
  • Magnetic Tripping Current
    850 A
  • Number Of Poles
    2P
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDL26050 on Powermatic Associates is $870.00. Order now.
