HJA36070 Schneider Electric Industrial Automation Components
Part#:HJA36070
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

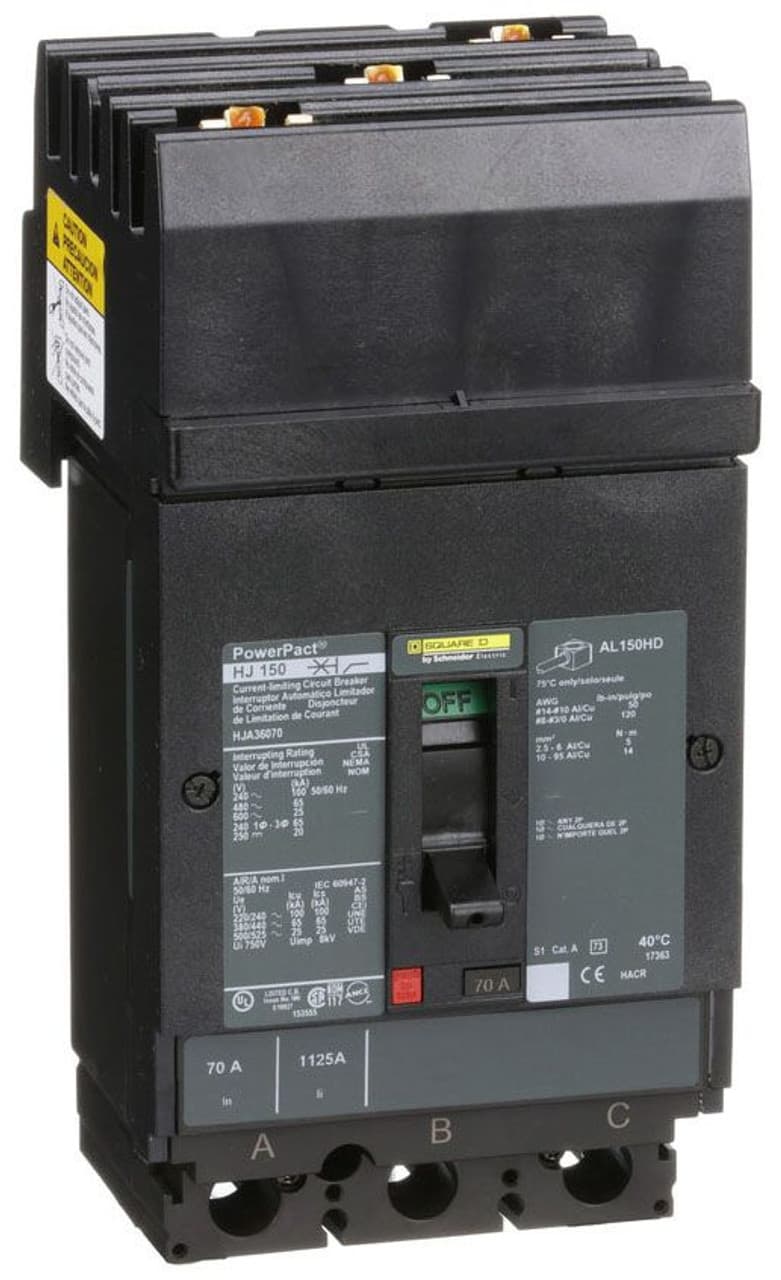

Square D by Schneider Electric HJA36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJA sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 70A and offers both thermal protection (overload) and magnetic protection (short-circuit). This MCCB has an I-line connection for ABC phases, with a rated insulation voltage (Ui) of 750 V and rated voltages of 600Vac/600Y/347Vac and 250Vdc. It is designed for mounting on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism. The device has a net height of 163 mm, a width of 104 mm, and a depth of 86 mm. It provides a degree of protection of IP40 and operates manually via a toggle. Protection settings include over-current fixed at 70A, short-circuit hold current fixed at 800A, and short-circuit trip current fixed at 1450A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 70 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies by voltage, up to 100kA at 240Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.
Product Details
- Product Or Component Type Circuit breaker
- Magnetic Hold Current 800 A
- Tightening Torque 44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
- Breaking Capacity Code J
- Mounting Mode I-Line
- Depth 4.8 in (121.92 mm)
- Magnetic Tripping Current 1450 A
- Phase Connection ABC
- Line Rated Current 70 A
- Height 9.73 in (247.14 mm)
- Range Of Product PowerPact H
- Width 4.48 in (113.79 mm)
- Number Of Poles 3P
- Shipping Width: 9.00 In.
- UPC: 78590170066
- Shipping Height: 6.00 In.
- Shipping Length: 15.00 In.
- Shipping Weight: 5.46 lbs.
- TS PIK: 120071893
- Electrical Connection I-Line connection line Lugs load
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJA36070 on Powermatic Associates is $2,225.00. Order now.
