HOM1224L125PRB Schneider Electric Industrial Automation Components

HOM1224L125PRB on Powermatic Associates
Schneider Electric

Part#:HOM1224L125PRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

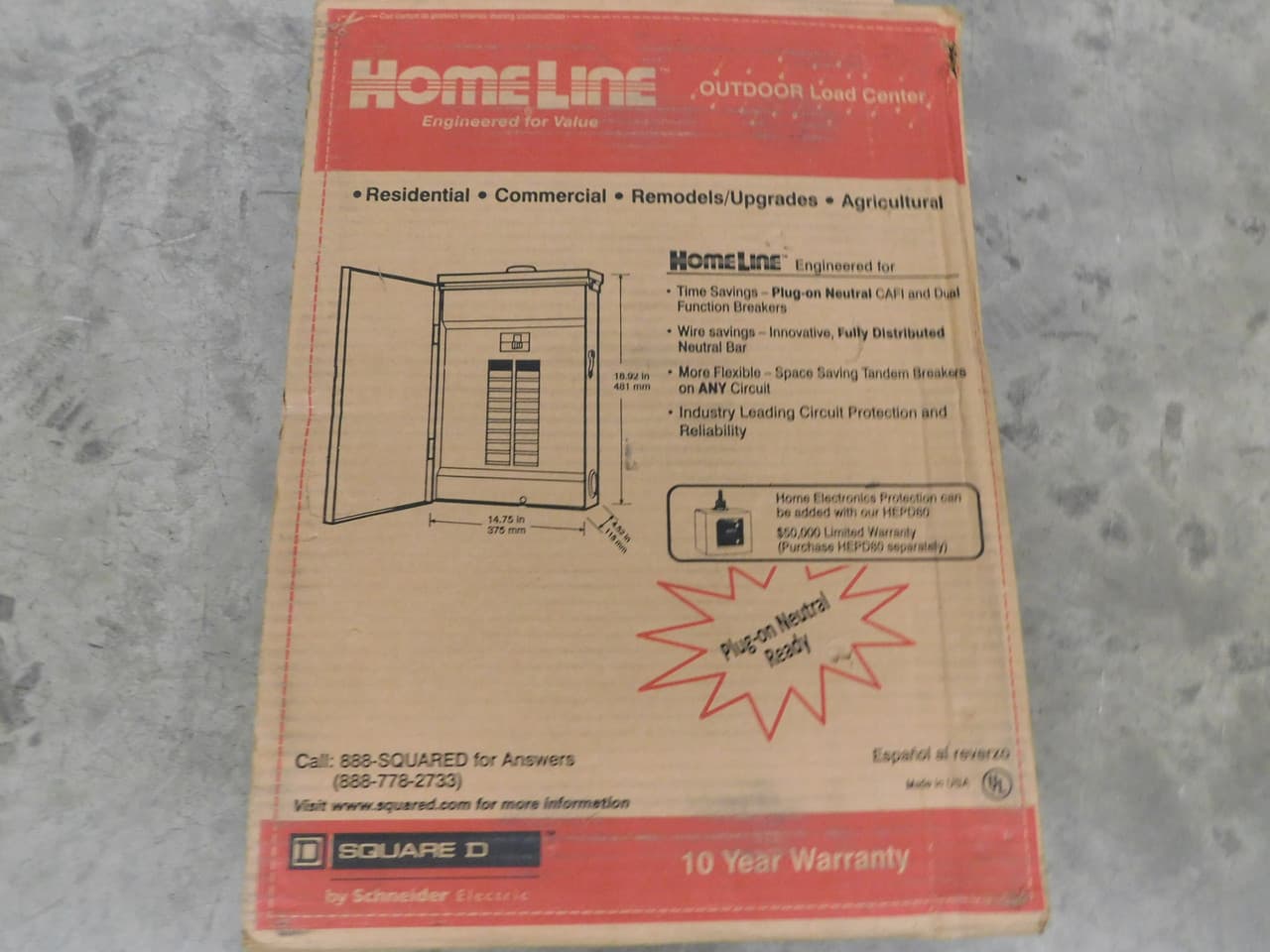

Square D by Schneider Electric HOM1224L125PRB is a load center designed for single-phase (1PH) networks. It features a welded galvannealed steel enclosure and a tin-plated aluminum busbar. This load center has dimensions of H758mm x W375mm x D115mm (H29.84" x W14.76" x D4.53"), offering 12 spaces for up to 24 single pole circuits or 12 tandem breakers. It is equipped with lugs for connection, has a rated current of 125A, and operates at a rated voltage of 120Vac/240Vac. The HOM1224L125PRB is designed to meet NEMA 3R protection standards, ensuring suitability for various applications.

Product Details

  • Maximum Number Of Single Pole Circuits
    24
  • Electrical Connection
    Lugs
  • Load Center Type
    Main lugs
  • Enclosure Rating
    NEMA 3R outdoor
  • Cover Type
    Surface cover
  • Rated Current
    125 A
  • Product Type
    Load Center
  • Number Of Spaces
    12
  • Marketing Trade Name
    Homeline
  • Surface Finish
    Baked enamel Gray
  • Maximum Number Of Tandem Breakers
    12
  • Number Of Phases
    1 phase
  • Voltage Rating
    120/240 V AC
  • Max Short Circuit Current Rating
    10 kA
  • Wiring Configuration
    3-wire
  • Depth
    4.53 in (115 mm)
  • Busbar Material
    Tin plated aluminium busbar
  • Box Number
    3R
  • Width
    14.76 in (375 mm)
  • Enclosure Material
    Welded galvannealed steel
  • Height
    18.94 in (481 mm)
  • Interrupting Rating:
    10 kA
  • Feed Location:
    Top/Bottom
  • UPC:
    785901863670
  • Amps:
    32 A
  • Enclosure Size Designation:
    3R
  • Volts:
    120/240 VAC
  • Bus Material:
    Tin Plated Aluminum
  • Shipping Weight:
    20.80 lbs.
  • Maximum Number of Circuits:
    24
  • Shipping Length:
    21.00 In.
  • Cover Type:
    Surface
  • Maximum Number of Spaces:
    12
  • Shipping Width:
    16.00 In.
  • Neutral Type:
    Plug-On
  • Enclosure:
    NEMA 3R
  • Main Wire Size:
    6 to 1 AWG (Copper)
  • Shipping Height:
    5.00 In.
  • Circuit Configuration:
    1-Phase 3-Wire
  • Breaker Mounting:
    Plug-On
  • Size:
    14.25 Inch W x 4.52 Inch D x 18.92 Inch H
  • Approval:
    UL
  • Type:
    Convertible Main Lug
  • Wire Size
    AWG 6...AWG 2/0 aluminium AWG 6...AWG 1 copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM1224L125PRB on Powermatic Associates is $300.24. Order now.
