HOM1224M100PC Schneider Electric Industrial Automation Components

HOM1224M100PC on Powermatic Associates
Schneider Electric

Part#:HOM1224M100PC

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

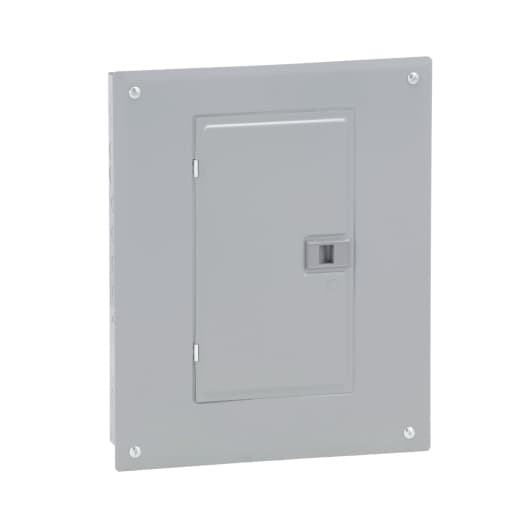

Square D by Schneider Electric HOM1224M100PC is a load center designed for single-phase (1PH) networks. It features a welded sheet steel enclosure and a tin-plated aluminum busbar. This load center has dimensions of H455mm x W362mm x D242mm (H17.91" x W14.25" x D9.53"), with 12 spaces accommodating up to 24 single pole circuits or 12 tandem breakers. It offers a connection type via lugs, a rated current of 100A, and operates at a rated voltage of 120Vac/240Vac. The HOM1224M100PC is designed to meet NEMA 1 degree of protection standards.

Product Details

  • Provided Equipment
    Circuit breaker 1) 2P 100 A 120/240 V AC main supply ready assembled
  • Box Number
    6
  • Number Of Spaces
    12
  • Maximum Number Of Tandem Breakers
    12
  • Load Center Type
    Main breaker
  • Number Of Phases
    1 phase
  • Surface Finish
    Baked enamel Gray
  • Max Short Circuit Current Rating
    22 kA
  • Depth
    3.74 in (95 mm)
  • Enclosure Rating
    NEMA 1 indoor
  • Busbar Material
    Tin plated aluminium busbar
  • Cover Type
    Combination flush/surface cover
  • Wiring Configuration
    3-wire
  • Marketing Trade Name
    Homeline
  • Wire Size
    AWG 6...AWG 2/0 aluminium/copper
  • Width
    14.25 in (362 mm)
  • Rated Current
    100 A
  • Voltage Rating
    120/240 V AC
  • Height
    17.91 in (455 mm)
  • Maximum Number Of Single Pole Circuits
    24
  • Product Type
    Load Center
  • Ground Bar
    Grounding bar (ordered separately)
  • Electrical Connection
    Lugs
  • Enclosure Material
    Welded sheet steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM1224M100PC on Powermatic Associates is $317.52. Order now.

HOM1224M100PC Related Documents

Catalog-1631040957637.pdfInstruction Sheet-1631040957626.pdfProduct Datasheet-1631040957630.pdf
