HOM1224M125PRBVP Schneider Electric Industrial Automation Components

HOM1224M125PRBVP on Powermatic Associates
Schneider Electric

Part#:HOM1224M125PRBVP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

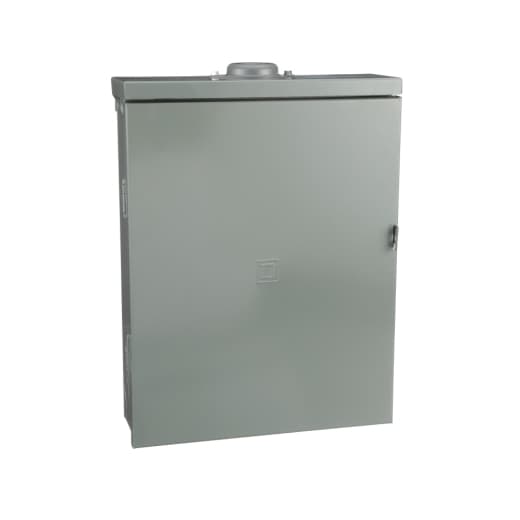

Square D by Schneider Electric HOM1224M125PRBVP is a load center designed for single-phase (1PH) networks. It features a welded galvannealed steel enclosure and a tin-plated aluminum busbar. This load center has dimensions of H481mm x W375mm x D115mm (H18.94" x W14.76" x D4.53"), with 12 spaces accommodating up to 24 single pole circuits or 12 tandem breakers. It offers a connection type via lugs, a rated current of 125A, and operates at a rated voltage of 120Vac/240Vac. The HOM1224M125PRBVP is protected to a degree of NEMA 3R.

Product Details

  • Electrical Connection
    Lugs
  • Voltage Rating
    120/240 V AC
  • Width
    14.76 in (375 mm)
  • Enclosure Rating
    NEMA 3R outdoor
  • Box Number
    3R
  • Marketing Trade Name
    Homeline
  • Busbar Material
    Tin plated aluminium busbar
  • Wiring Configuration
    3-wire
  • Maximum Number Of Single Pole Circuits
    24
  • Load Center Type
    Main breaker
  • Maximum Number Of Tandem Breakers
    12
  • Height
    18.94 in (481 mm)
  • Cover Type
    Surface cover
  • Product Type
    Load Center
  • Max Short Circuit Current Rating
    22 kA
  • Enclosure Material
    Welded galvannealed steel
  • Rated Current
    125 A
  • Number Of Phases
    1 phase
  • Depth
    4.53 in (115 mm)
  • Number Of Spaces
    12
  • Ground Bar
    Grounding bar (ordered separately)
  • Surface Finish
    Baked enamel Gray
  • Wire Size
    AWG 6...AWG 2/0 aluminium AWG 6...AWG 1 copper
  • Provided Equipment
    Circuit breaker 3) 1P 20 A 120/240 V AC Circuit breaker 2) 2P 30 A 120/240 V AC Circuit breaker 1) 2P 125 A 120/240 V AC main supply ready assembled

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM1224M125PRBVP on Powermatic Associates is $850.50. Order now.
