HOM130 Schneider Electric Industrial Automation Components

HOM130 on Powermatic Associates
Schneider Electric

Part#:HOM130

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

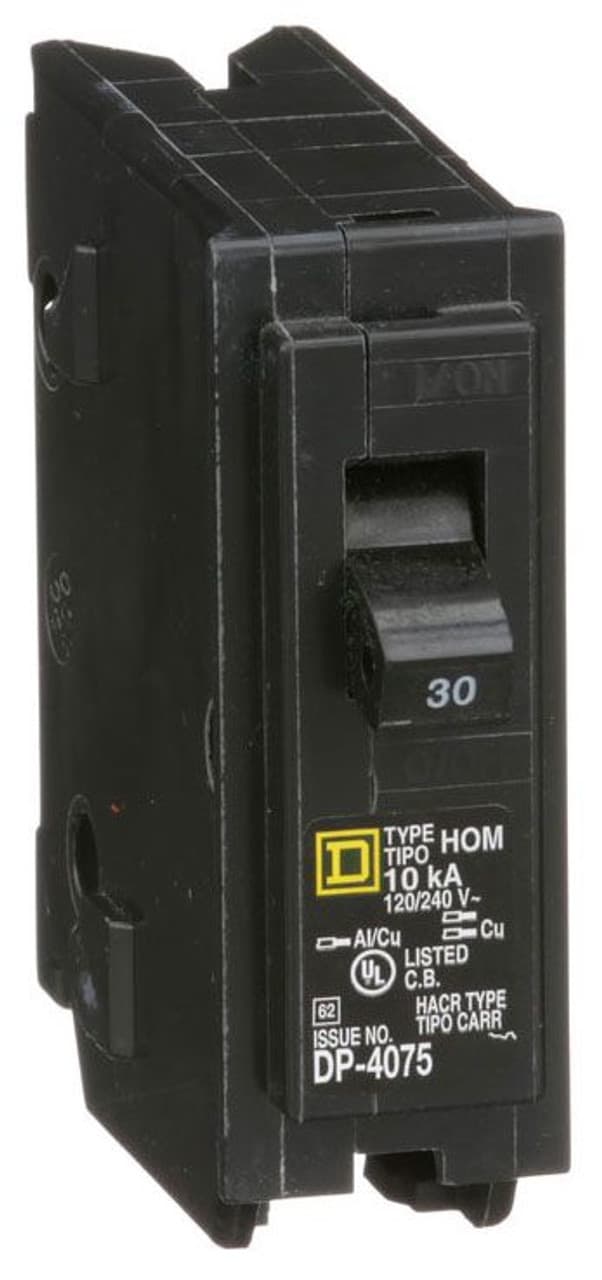

Square D by Schneider Electric HOM130 is a Miniature Circuit Breaker (MCB) designed for plug-in connection. It features a single pole configuration and is rated for a current of 30A with an operating voltage of 120V AC. The mounting mode for this MCB is plug-in, accommodating a cross-section of 14-8AWG for one aluminum or copper cable and 14-10AWG for two copper cables. It has a short circuit breaking rating of 10kA at 120Vac and utilizes screw clamp type terminals for secure connections.

Product Details

  • Number Of Poles
    1P
  • Height
    3.13 in (79.50 mm)
  • Voltage Rating
    120/240 V AC
  • Range
    Homeline
  • Circuit Breaker Type
    Standard
  • Current Rating
    30 A
  • Electrical Connection
    Clamp terminal for 2 cables
  • Tightening Torque
    35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
  • Certifications
    UL Listed
  • Short Circuit Current Rating
    10 kA
  • Ratings
    HACR rated
  • Product
    Miniature circuit-breaker
  • Mounting Type
    Plug-in
  • Depth
    2.98 in (75.69 mm)
  • Number Of Spaces
    1
  • Width
    1 in (25.40 mm)
  • Shipping Height:
    3.00 In.
  • Shipping Weight:
    0.35 lbs.
  • Shipping Width:
    1.00 In.
  • UPC:
    78590106522
  • TS PIK:
    21032498
  • Shipping Length:
    3.00 In.
  • Wire Size
    AWG 14...AWG 8 aluminium/copper)1 AWG 14...AWG 10 copper)2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM130 on Powermatic Associates is $26.30. Order now.
