HOM3060M150PC Schneider Electric Industrial Automation Components

HOM3060M150PC on Powermatic Associates
Schneider Electric

Part#:HOM3060M150PC

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

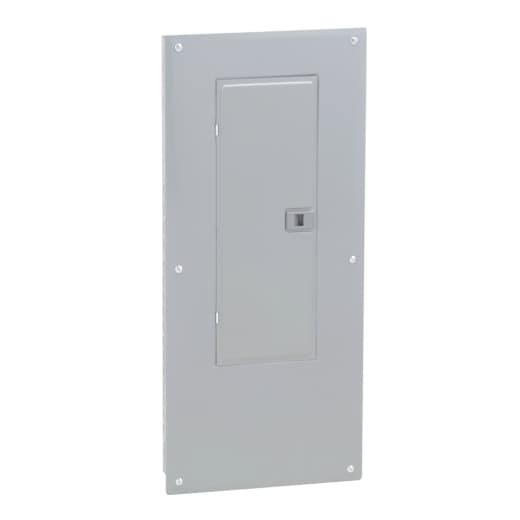

Square D by Schneider Electric HOM3060M150PC is a load center designed for single-phase (1PH) networks. It features a welded sheet steel enclosure and a tin-plated aluminum busbar. This load center has dimensions of H858mm x W362mm x D95mm (H33.78" x W14.25" x D3.74"), offering 30 spaces for circuit installation. It is equipped with lugs for connection and is rated for a current of 150A and a voltage of 120Vac/240Vac. The HOM3060M150PC provides a degree of protection classified as NEMA 1 and can accommodate up to 60 single pole circuits or 30 tandem breakers.

Product Details

  • Number Of Spaces
    30
  • Wiring Configuration
    3-wire
  • Width
    14.25 in (362 mm)
  • Product Type
    Load Center
  • Number Of Phases
    1 phase
  • Surface Finish
    Baked enamel Gray
  • Enclosure Rating
    NEMA 1 indoor
  • Height
    33.78 in (858 mm)
  • Cover Type
    Combination flush/surface cover
  • Enclosure Material
    Welded sheet steel
  • Maximum Number Of Single Pole Circuits
    60
  • Wire Size
    AWG 4...250 kcmil aluminium/copper
  • Box Number
    10
  • Rated Current
    150 A
  • Maximum Number Of Tandem Breakers
    30
  • Provided Equipment
    Circuit-breaker 1) 2P 150 A 120/240 V AC main supply ready assembled
  • Depth
    3.74 in (95 mm)
  • Max Short Circuit Current Rating
    22 kA
  • Busbar Material
    Tin plated aluminium busbar
  • Load Center Type
    Main breaker
  • Voltage Rating
    120/240 V AC
  • Electrical Connection
    Lugs
  • Ground Bar
    Grounding bar (ordered separately)
  • Marketing Trade Name
    Homeline

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM3060M150PC on Powermatic Associates is $822.84. Order now.
