HOM48L125GRB Schneider Electric Industrial Automation Components

HOM48L125GRB on Powermatic Associates
Schneider Electric

Part#:HOM48L125GRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

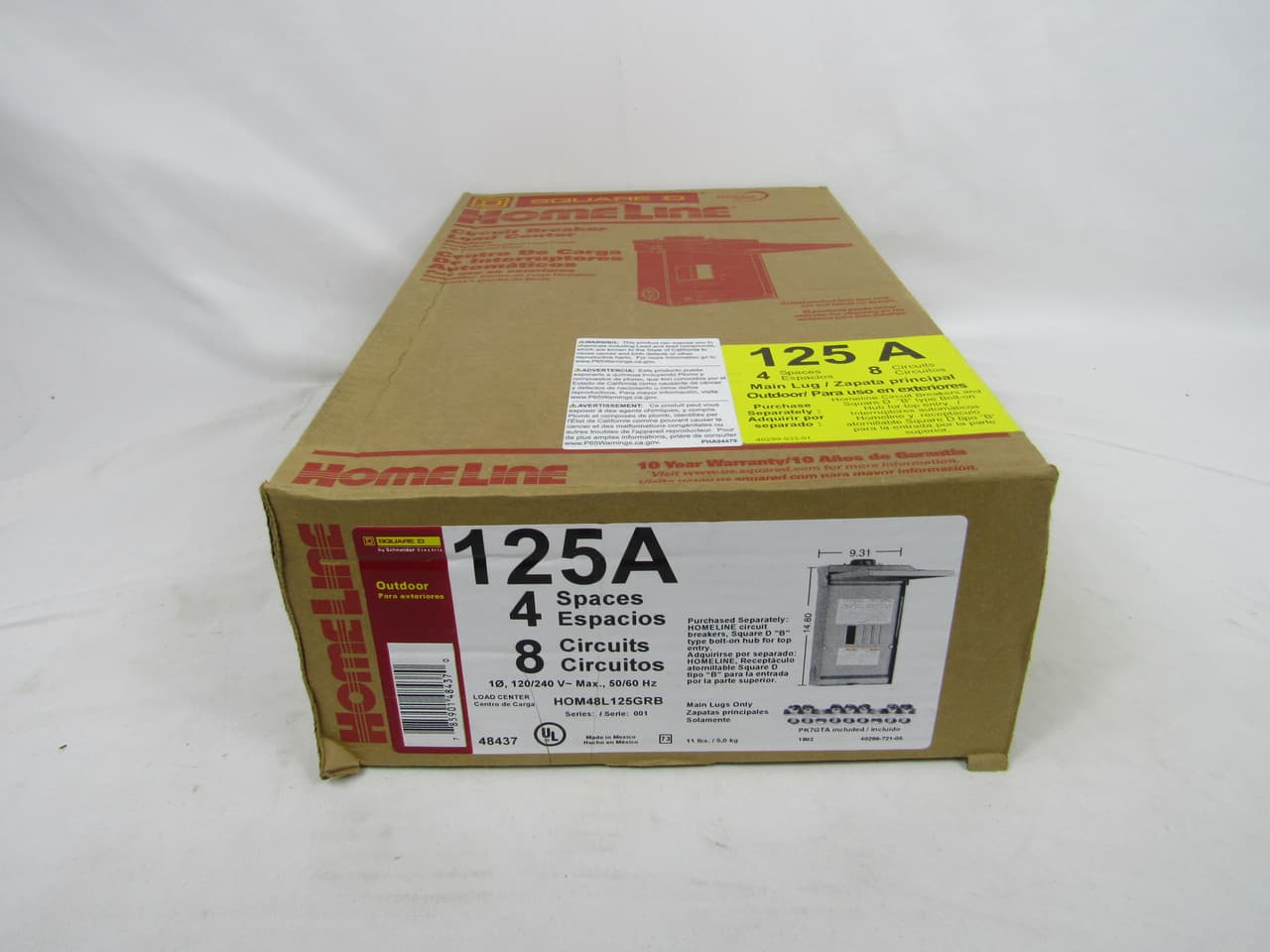

Square D by Schneider Electric HOM48L125GRB is a load center designed for single-phase (1PH) networks. It features a welded galvannealed steel enclosure and a tin-plated aluminum busbar. This load center has dimensions of H376mm x W226mm x D108mm (H14.8" x W8.9" x D4.25"), offering 4 spaces for circuit installation. It is equipped with lugs for connection, supports a rated current of 125A, and operates at a rated voltage of 120Vac/240Vac. The HOM48L125GRB provides a degree of protection rated at NEMA 3R and can accommodate up to 8 single pole circuits or 4 tandem breakers.

Product Details

  • Cover Type
    Surface cover
  • Product Type
    Load Center
  • Depth
    4.25 in (108 mm)
  • Ground Bar
    Grounding bar included (not installed)
  • Electrical Connection
    Lugs
  • Wiring Configuration
    3-wire
  • Marketing Trade Name
    Homeline
  • Max Short Circuit Current Rating
    10 kA
  • Height
    14.80 in (376 mm)
  • Enclosure Rating
    NEMA 3R outdoor
  • Width
    8.90 in (226 mm)
  • Load Center Type
    Main lugs
  • Maximum Number Of Tandem Breakers
    4
  • Enclosure Material
    Welded galvannealed steel
  • Maximum Number Of Single Pole Circuits
    8
  • Voltage Rating
    120/240 V AC
  • Surface Finish
    Baked enamel Gray
  • Rated Current
    125 A
  • Number Of Phases
    1 phase
  • Box Number
    15R
  • Number Of Spaces
    4
  • Provided Equipment
    Grounding bar 1)
  • Busbar Material
    Tin plated aluminium busbar
  • Shipping Width:
    5.00 In.
  • Neutral Type:
    Bonded
  • Main Wire Size:
    12 to 2/0 AWG (Aluminum)
  • Type:
    Fixed Main Lug
  • Interrupting Rating:
    10 kA
  • Shipping Weight:
    11.35 lbs.
  • UPC:
    785901484370
  • Enclosure Size Designation:
    16R
  • Volts:
    120/240 VAC
  • Maximum Number of Spaces:
    4
  • Approval:
    UL
  • Enclosure:
    NEMA 3R
  • Shipping Height:
    17.00 In.
  • Cover Type:
    Surface
  • Maximum Number of Circuits:
    8
  • Shipping Length:
    11.00 In.
  • Feed Location:
    Top
  • Size:
    8.55 Inch W x 4.16 Inch D x 24.75 Inch H
  • Circuit Configuration:
    1 Phase 3 Wire
  • Amps:
    32 A
  • Bus Material:
    Tin Plated Aluminum
  • Wire Size
    AWG 14...AWG 2/0 copper AWG 12...AWG 2/0 aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM48L125GRB on Powermatic Associates is $137.00. Order now.

HOM48L125GRB Related Documents

Catalog-1702169042105.pdfInstallationOperator.pdfDataSheet.pdfManufacturerWarranty.pdf
