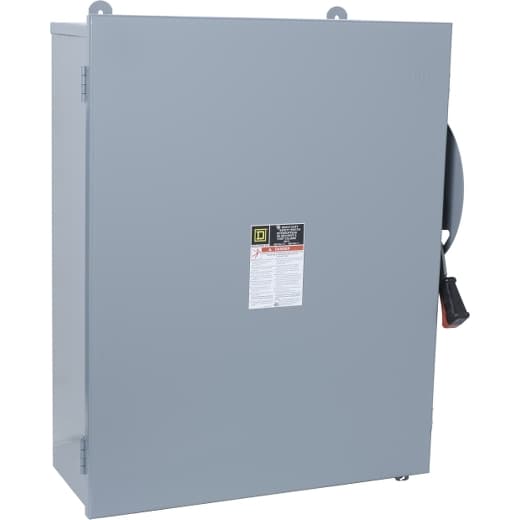

HU664AWK Schneider Electric Industrial Automation Components

HU664AWK on Powermatic Associates
Schneider Electric

Part#:HU664AWK

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - HU664AWK

Product Details

  • Voltage Rating
    600 V AC
  • Wire Size
    AWG 6...250 kcmil copper or aluminium
  • Duty Rating
    Heavy duty
  • Current Rating
    200 A
  • Height
    29 in (736.60 mm)
  • Number Of Poles
    6
  • Width
    24.88 in (631.95 mm)
  • Factory Installed Neutral
    None
  • Product
    Single Throw Safety Switch
  • Electrical Connection
    Lugs
  • Phase
    3 phase
  • Mounting Type
    Surface
  • Net Weight
    82.50 lb(US) (37.42 kg)
  • Device Application
    Heavy application
  • Disconnect Type
    Non-fusible disconnect
  • Depth
    8.75 in (222.25 mm)
  • Enclosure Rating
    NEMA 3R/12 galvannealed steel
  • Wiring Configuration
    6-wire
  • Tightening Torque
    275 lbf.in (31.07 N.m) 0.02…0.20 in² (13.3…127 mm²) (AWG 6...250 kcmil)
  • Maximum Horse Power Rating
    60 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 125 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 150 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HU664AWK on Powermatic Associates is $10,538.00. Order now.
