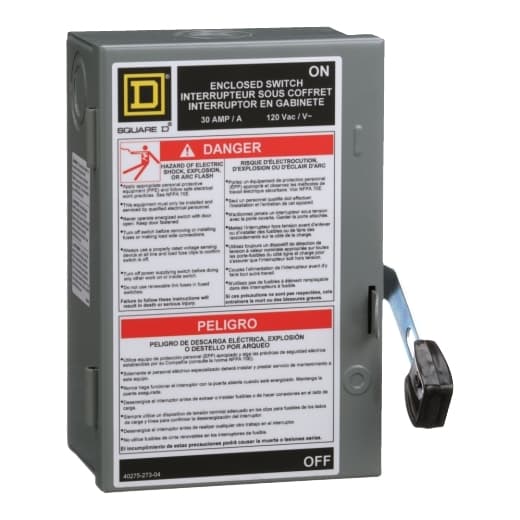

L111N Schneider Electric Industrial Automation Components

Name: L111N
Brand: Schneider Electric
Price: 54 USD
Availability: BackOrder

Part#:L111N

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - L111N

Product Details

Phase
3 phase
Wiring Configuration
2-wire
Disconnect Type
Fusible disconnect
Width
6.13 in (155.70 mm)
Height
7.63 in (193.80 mm)
Current Rating
30 A
Duty Rating
Light duty
NEMA Degree Of Protection
NEMA 1
Number Of Poles
1
Fuse Type
Plug
Product
Single Throw Safety Switch
Depth
4 in (101.60 mm)
Mounting Type
Surface
Factory Installed Neutral
Neutral (factory installed)
Voltage Rating
120 V AC
Short-Circuit Current
10 kA
Device Application
Furnace Garages
Wire Size
AWG 14...AWG 8 copper AWG 12...AWG 8 aluminium
Tightening Torque
30 lbf.in (3.39 N.m) 0.00…0.01 in² (2.082…8.367 mm²) (AWG 14...AWG 8) 30 lbf.in (3.39 N.m) 0.01…0.01 in² (3.307…8.367 mm²) (AWG 12...AWG 8)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of L111N on Powermatic Associates is $54.00. Order now.

L111N Related Documents

Instruction Sheet-1631038441720.pdf Catalog-1631038441725.pdf Product Datasheet-1631038441722.pdf
