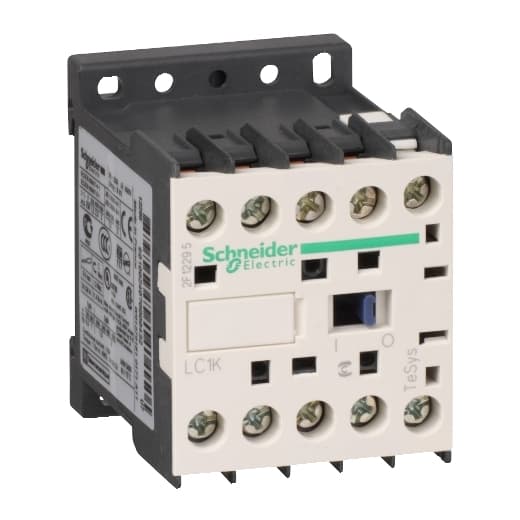

LC1K0610M7 Schneider Electric Industrial Automation Components

Product Details

• Product Or Component Type
  Contactor
• Contactor Application
  Motor control
• Inrush Power In VA
  30 VA 68 °F (20 °C))
• Minimum Switching Voltage
  17 V signalling circuit
• Width
  1.77 in (45 mm)
• Power Pole Contact Composition
  3 NO
• Heat Dissipation
  1.3 W
• Device Short Name
  LC1K
• Range
  TeSys
• [Uc] Control Circuit Voltage
  220...230 V AC 50/60 Hz
• Average Impedance
  3 mOhm - Ith 20 A 50 Hz power circuit
• Depth
  2.24 in (57 mm)
• [Uimp] Rated Impulse Withstand Voltage
  8 kV
• Insulation Resistance
  > 10 MOhm for signalling circuit
• Minimum Switching Current
  5 mA signalling circuit
• Height
  2.28 in (58 mm)
• Poles Description
  3P
• Maximum Operating Rate
  3600 cyc/h
• Mechanical Durability
  10 Mcycles
• Auxiliary Contact Composition
  1 NO
Device Application
Control
Overvoltage Category
III
Hold-In Power Consumption In VA
4.5 VA 68 °F (20 °C))
Net Weight
0.40 lb(US) (0.18 kg)
[Ie] Rated Operational Current
6 A<= 440 V AC AC-3 power circuit
Product Name
TeSys K
Control Circuit Type
AC at 50/60 Hz
Signalling Circuit Frequency
<= 400 Hz
Auxiliary Contacts Type
Instantaneous 1 NO
Electrical Durability
1.3 Mcycles 6 A AC-3 <= 440 V
Non Overlap Distance
0.02 in (0.5 mm)
Tightening Torque
11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
Mounting Support
Rail Plate
Utilisation Category
AC-3 AC-4
[Ith] Conventional Free Air Thermal Current
20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
[Ue] Rated Operational Voltage
Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Control Circuit Voltage Limits
Operational: 0.8...1.15 Uc (at <50 °C) Drop-out: 0.2...0.75 Uc (at <50 °C)
Operating Time
10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing
Irms Rated Making Capacity
110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
Associated Fuse Rating
25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
Connections - Terminals
screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end screw clamp terminals 2 0.00…
Mechanical Robustness
Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contac
[Icw] Rated Short-Time Withstand Current
90 A 122 °F (50 °C) - 1 s power circuit 85 A 122 °F (50 °C) - 5 s power circuit 80 A 122 °F (50 °C) - 10 s power circuit 60 A 122 °F (50 °C) - 30 s power circuit 45 A 122 °F (50 °C) - 1 min power circuit 40 A 122 °F (50 °C) - 3 mi
Rated Breaking Capacity
110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
Motor Power Kw
1.5 kW 220...230 V AC 50/60 Hz AC-3 2.2 kW 380...415 V AC 50/60 Hz AC-3 3 kW 440 V AC 50/60 Hz AC-3 3 kW 480 V AC 50/60 Hz AC-3 3 kW 500...600 V AC 50/60 Hz AC-3 3 kW 660...690 V AC 50/60 Hz AC-3 1.5 kW 400 V AC 50/60 Hz AC-4
[Ui] Rated Insulation Voltage
Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
