Schneider Electric

Part#:LV426974

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

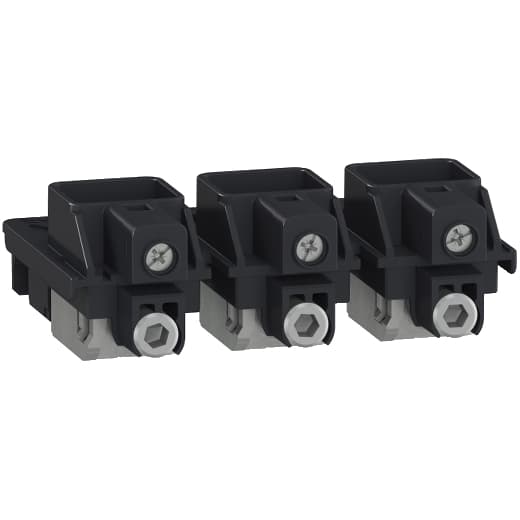

Schneider Electric LV426974 is a lug designed for mechanical functions, featuring an Everlink lugs kit with a built-in control wire terminal (CWT). It is compatible with 3-pole (3P) devices and supports a rated current range from 15 to 125A. This lug is suitable for connecting 1 x #14 to 3/0AWG cables, ensuring compatibility with a wide range of cable sizes for diverse applications.

Product Details

  • Device Short Name
    Connectors
  • Conductor Material
    Steel
  • Poles Description
    3P
  • Range Compatibility
    PowerPact B
  • Accessory / Separate Part Type
    Connection accessories
  • Quantity Per Set
    Set of 1
  • Product Or Component Type
    Cable connector
  • Control Wire Terminal
    10 A 0.00…0.01 in² (0.5…6 mm²) AWG 20...AWG 10), stranded or fine stranded 10 A 0.00…0.01 in² (1.5…6 mm²) AWG 20...AWG 10), rigid
  • Line Rated Current
    15…125 A copper 15…100 A aluminium
  • Location Of Connection
    Downstream Upstream
  • Connections - Terminals
    Screw terminal - 1 0.00…0.15 in² (2.5…95 mm²) AWG 14...AWG 3/0) - solid Screw terminal 0.00…0.15 in² (2.5…95 mm²) AWG 14...AWG 3/0) - stranded Screw terminal 0.00…0.11 in² (2.5…70 mm²) AWG 6...AWG 2/0) - fine stranded

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LV426974 on Powermatic Associates is $107.00. Order now.
