MJL26400 Schneider Electric Industrial Automation Components

MJL26400 on Powermatic Associates
Schneider Electric

Part#:MJL26400

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

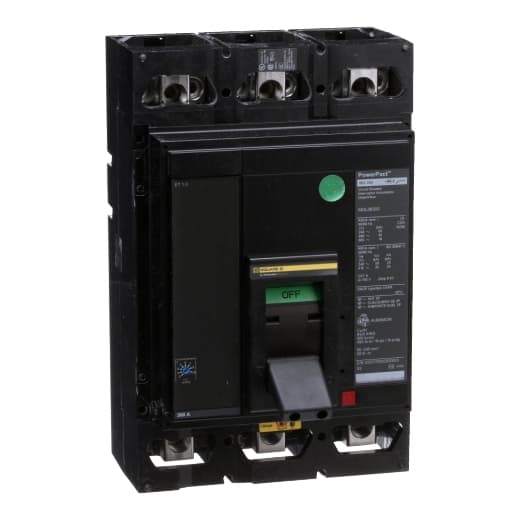

Square D by Schneider Electric MJL26400 is a Moulded Case Circuit Breaker (MCCB) designed for individual unit mount on plate. It features a PowerPact M-Frame 800 ET1 (LI) 2P 400A 600Vac 25kA design with lugs on both load and line sides for connection. This MCCB has a net height of 210 mm, a net width of 153 mm, and a net depth of 204 mm. It operates with a rated current of 400A and a rated voltage of 600Vac 600Y/347Vac. The MJL26400 is equipped with 2 poles (2P) and offers a rated operating voltage (Ue) of 600 V. Its protection functions include Long-time protection (L) and Instantaneous protection (I), with a trip current rating of 400 AT and a frame current rating of 800 AF. The short circuit breaking rating is specified as 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, and 25kA at 600Vac and 600Y/347Vac, all according to UL489 standards. The trip unit type is an electronic ET1.0 (LI) with no display, and it provides protection settings against overload fixed at 400A and adjustable instantaneous protection against short-circuit from 1.5 to 12 times the rated current (800A to 4000A).

Product Details

  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil)
  • Height
    12.86 in (326.6 mm)
  • Breaking Capacity Code
    J
  • Width
    0.32 in (8.06 mm)
  • Number Of Poles
    2P
  • Continuous Current Rating
    80 %
  • Magnetic Tripping Current
    800…4000 A
  • Line Rated Current
    400 A
  • Terminal Identifier
    AL800M23K
  • Depth
    8.27 in (210 mm)
  • Product Or Component Type
    Circuit breaker
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MJL26400 on Powermatic Associates is $7,829.00. Order now.

MJL26400 Related Documents

Product Datasheet-1631031496070.pdfInstruction Sheet-1631031496075.pdfCatalog-1631031496072.pdf
