Part#:NSYEBAD11614

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

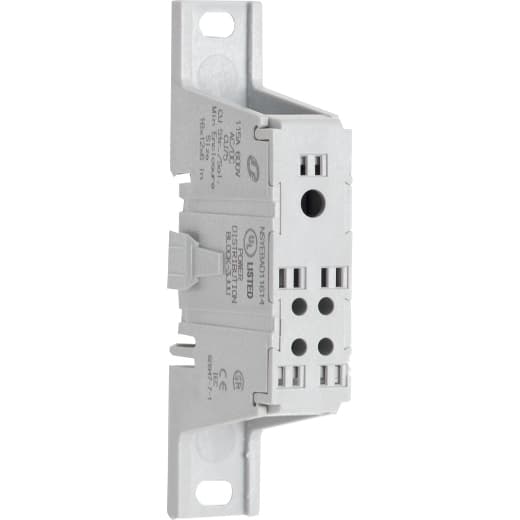

Schneider Electric - NSYEBAD11614

Product Details

  • Material
    Thermoplastic block
  • Depth
    1.71 in (43.43 mm)
  • Line Rated Current
    115 A copper
  • Width
    0.85 in (21.59 mm)
  • Short-Circuit Current
    65 kA
  • Product Or Component Type
    Power Distribution Block
  • Colour Of Enclosure
    Grey
  • Electrical Connection
    Tin plated aluminium lugs
  • [Ue] Rated Operational Voltage
    600 V AC/DC
  • Height
    4.14 in (105.16 mm)
  • Fixing Mode
    By screws 10
  • Range Of Product
    NSYEB
  • Number Of Cables
    Line 1, AWG 14...AWG 2, copper Load 4, AWG 14...AWG 10, copper
  • Number Of Terminals
    1 line 4 load
  • Mounting Support
    Panel 35 mm DIN rail
  • Wire Stripping Length
    Line 0.63 in (16.00 mm) Load 0.44 in (11.18 mm) top Load 0.69 in (17.53 mm) bottom
  • Connections - Terminals
    Line lug 50 lbf.in (5.65 N.m) AWG 3...AWG 2 copper Line lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper Line lug 40 lbf.in (4.52 N.m) AWG 8 copper Line lug 35 lbf.in (3.95 N.m) AWG 14...AWG 10 copper Load lug 35 lbf.in (3.95 N.m) AWG 14.
  • Tightening Torque
    Line 50 lb.in, AWG 3...AWG 2, copper Line 45 lb.in, AWG 6...AWG 4, copper Line 40 lb.in, AWG 8, copper Line 35 lb.in, AWG 14...AWG 10, copper Load 35 lb.in, AWG 14...AWG 10, copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYEBAD11614 on Powermatic Associates is $35.35. Order now.
