NSYPLAT754G Schneider Electric Industrial Automation Components

NSYPLAT754G on Powermatic Associates
Schneider Electric

Part#:NSYPLAT754G

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

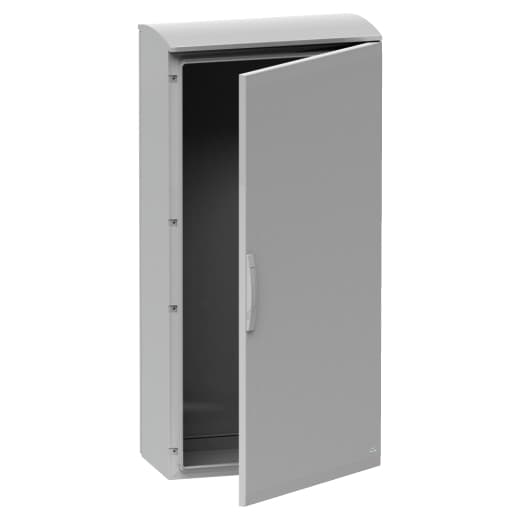

Schneider Electric - NSYPLAT754G

Product Details

  • Enclosure Mounting
    Floor-standing
  • Number Of Doors
    1
  • Product Certifications
    Veritas
  • Nominal Width
    19.69 in (500 mm)
  • Door Opening Side
    Reversible 120 °)
  • Nominal Depth
    16.54 in (420 mm)
  • Nominal Height
    29.53 in (750 mm)
  • Lock Type
    2 points handle lock, 5 mm double-bar
  • Range
    Thalassa
  • Material
    polyester reinforced with fibreglass
  • Product Or Component Type
    Suitable enclosure
  • Color
    Gray RAL 7035)
  • Enclosure Type
    Multi-purpose
  • Door Type
    Solid front
  • Product Name
    Thalassa PLA
  • Standards
    IEC 62208
  • Electrical Insulation Class
    Class II
  • Version
    PLAT
  • Body Type
    Open top and sealed bottom part assembled with side parts
  • Device Composition
    1 top part 1 bottom part 2 side part 1 rear panel 1 door 1 canopy
  • Removable Parts
    Door by hinges Rear panel by fixing element Canopy by fixing element
  • Accessibility For Operation
    Top Rear Front

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYPLAT754G on Powermatic Associates is $1,172.40. Order now.
