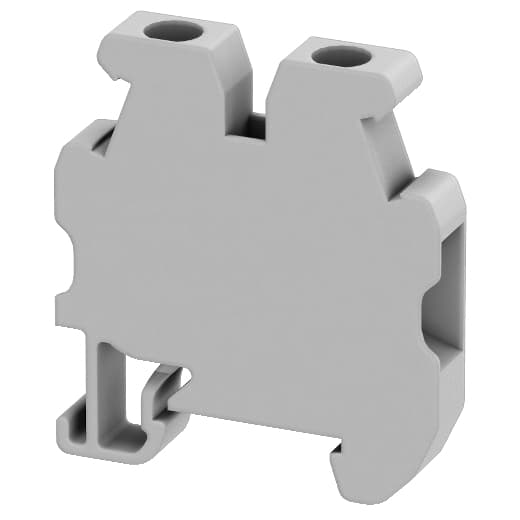

NSYTRV22MPE Schneider Electric Industrial Automation Components

Product Details

• Length
  1.18 in (30 mm)
• Range
  Linergy
• Material
  Polyamide 6/6 insulating case
• Product Name
  Linergy TR
• Mounting Mode
  Clip-on
• Number Of Connections
  2
• Nominal Cross Section
  0.00 in² (2.5 mm²)
• Connection Position
  Sideways
• Terminal Block Level
  1
• Width
  0.20 in (5.2 mm)
• Quantity Per Set
  Set of 50
• Wire Stripping Length
  0.35 in (9 mm)
• Color
  Green-yellow
• Product Or Component Type
  Mini terminal block
• Product Compatibility
  Spacial enclosures
• Tightening Torque
  4.43…5.31 lbf.in (0.5…0.6 N.m)
• Flame Retardance
  V0 0.03 in (0.8 mm) UL 94
• Device Short Name
  TRV
• Number Of Measurement Input
  1
• Height
  1.34 in (34 mm)
Terminal Block Type
Protective earth
Connections - Terminals
1 x screw terminal upstream 1 x screw terminal downstream
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Tool Type
Connection screwdriver Disconnection screwdriver
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Cable Cross Section
0.00…0.01 in² (0.2…4 mm²), solid 0.00…0.00 in² (0.2…2.5 mm²), flexible with cable end 0.00…0.01 in² (0.14…4 mm²), flexible without cable end
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
