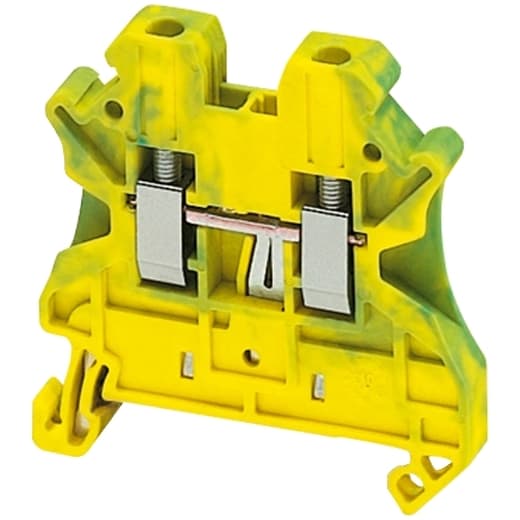

NSYTRV22PE Schneider Electric Industrial Automation Components

Product Details

• Length
  1.88 in (47.7 mm)
• Product Or Component Type
  Terminal block
• Number Of Measurement Input
  2
• Width
  0.20 in (5.2 mm)
• Tightening Torque
  4.43…5.31 lbf.in (0.5…0.6 N.m)
• Mounting Mode
  Clip-on
• Terminal Block Type
  Protective earth
• Range
  Linergy
• Product Compatibility
  Spacial enclosures
• Device Short Name
  TRV
• Number Of Connections
  2
• Wire Stripping Length
  0.35 in (9 mm)
• Color
  Green-yellow
• Material
  Polyamide 6/6 insulating case
• Nominal Cross Section
  0.00 in² (2.5 mm²)
• Quantity Per Set
  Set of 50
• Product Name
  Linergy TR
• Height
  1.87 in (47.5 mm)
• Flame Retardance
  V0 0.03 in (0.8 mm) UL 94
• Terminal Block Level
  1
Dielectric Constant
3.7 at 1 MHz
Net Weight
0.41 oz (11.58 g)
Connection Position
Sideways
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Tool Type
Connection screwdriver Disconnection screwdriver
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Connections - Terminals
1 x screw terminal upstream 1 x screw terminal downstream
Cable Cross Section
0.00…0.01 in² (0.14…4 mm²), solid 0.00…0.00 in² (0.2…2.5 mm²), flexible with cable end 0.00…0.01 in² (0.14…4 mm²), flexible without cable end
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
