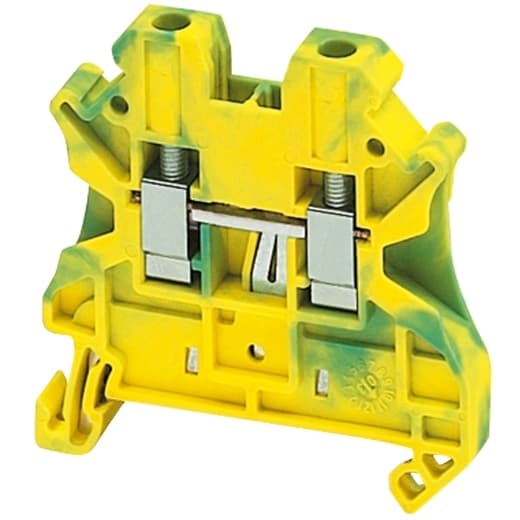

NSYTRV42PE Schneider Electric Industrial Automation Components

Product Details

• Device Short Name
  TRV
• Tightening Torque
  5.31…7.08 lbf.in (0.6…0.8 N.m)
• Product Compatibility
  Spacial enclosures
• Nominal Cross Section
  0.01 in² (4 mm²)
• Color
  Green-yellow
• Product Or Component Type
  Terminal block
• Material
  Polyamide 6/6 insulating case
• Mounting Mode
  Clip-on
• Height
  1.87 in (47.5 mm)
• Range
  Linergy
• Connection Position
  Sideways
• Wire Stripping Length
  0.35 in (9 mm)
• Terminal Block Type
  Protective earth
• Number Of Connections
  2
• Dielectric Constant
  3.7 at 1 MHz
• Terminal Block Level
  1
• Number Of Measurement Input
  2
• Product Name
  Linergy TR
• Width
  0.24 in (6.2 mm)
• Net Weight
  0.47 oz (13.38 g)
Length
1.88 in (47.7 mm)
Quantity Per Set
Set of 50
Flame Retardance
V0 0.03 in (0.8 mm) UL 94
Connections - Terminals
1 x screw terminal upstream 1 x screw terminal downstream
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Tool Type
Connection screwdriver Disconnection screwdriver
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Cable Cross Section
0.00…0.01 in² (0.14…6 mm²), solid 0.00…0.01 in² (0.2…4 mm²), flexible with cable end 0.00…0.01 in² (0.14…6 mm²), flexible without cable end
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
