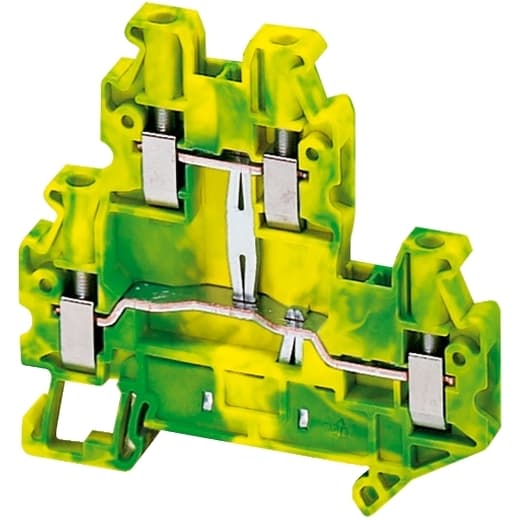

NSYTRV44DPE Schneider Electric Industrial Automation Components

Product Details

• Length
  2.75 in (69.9 mm)
• Connection Position
  Sideways
• Dielectric Constant
  3.7 at 1 MHz
• Product Name
  Linergy TR
• Quantity Per Set
  Set of 50
• Net Weight
  0.82 oz (23.3 g)
• Mounting Mode
  Clip-on
• Number Of Measurement Input
  4
• Device Short Name
  TRV
• Color
  Green-yellow
• Material
  Polyamide 6/6 insulating case
• Range
  Linergy
• Nominal Cross Section
  0.01 in² (4 mm²)
• Product Or Component Type
  Terminal block
• Terminal Block Level
  2
• Width
  0.24 in (6.2 mm)
• Product Compatibility
  Spacial enclosures
• Tightening Torque
  5.31…7.08 lbf.in (0.6…0.8 N.m)
• Height
  2.56 in (65 mm)
• Flame Retardance
  V0 0.03 in (0.8 mm) UL 94
Number Of Connections
2
Terminal Block Type
Protective earth
Wire Stripping Length
0.35 in (9 mm)
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Tool Type
Connection screwdriver Disconnection screwdriver
Connections - Terminals
1 x screw terminal upstream 1 x screw terminal downstream
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Cable Cross Section
0.00…0.01 in² (0.14…6 mm²), solid 0.00…0.01 in² (0.2…4 mm²), flexible with cable end 0.00…0.01 in² (0.14…6 mm²), flexible without cable end
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
