Q22200NRB Schneider Electric Industrial Automation Components

Name: Q22200NRB
Brand: Schneider Electric
Price: 380 USD
Availability: BackOrder

Part#:Q22200NRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

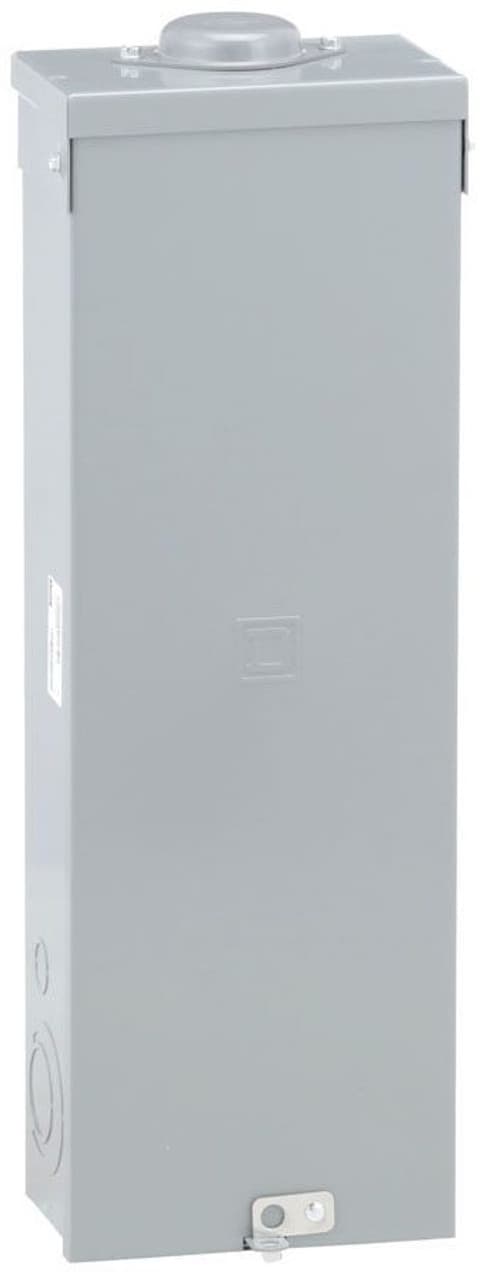

Square D by Schneider Electric Q22200NRB is an enclosure designed specifically for mold case circuit breakers. It supports a rated current range from 100A to 200A and falls under the Q-Frame sub-range. The dimensions of this product are H594mm x W194mm x D121mm (H23.39" x W7.64" x D4.75"), ensuring it can accommodate the specified circuit breakers within its steel construction. It offers a degree of protection rated at NEMA 3R, suitable for various environmental conditions. This enclosure is compatible with both 2 Pole and 3 Pole configurations, providing versatility in its application.

Product Details

Shipping Weight:
15.35 lbs.
Shipping Length:
26.00 In.
Shipping Height:
7.00 In.
TS PIK:
111093500
Shipping Width:
10.00 In.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q22200NRB on Powermatic Associates is $380.00. Order now.
