QO115 Schneider Electric Industrial Automation Components

QO115 on Powermatic Associates
Schneider Electric

Part#:QO115

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

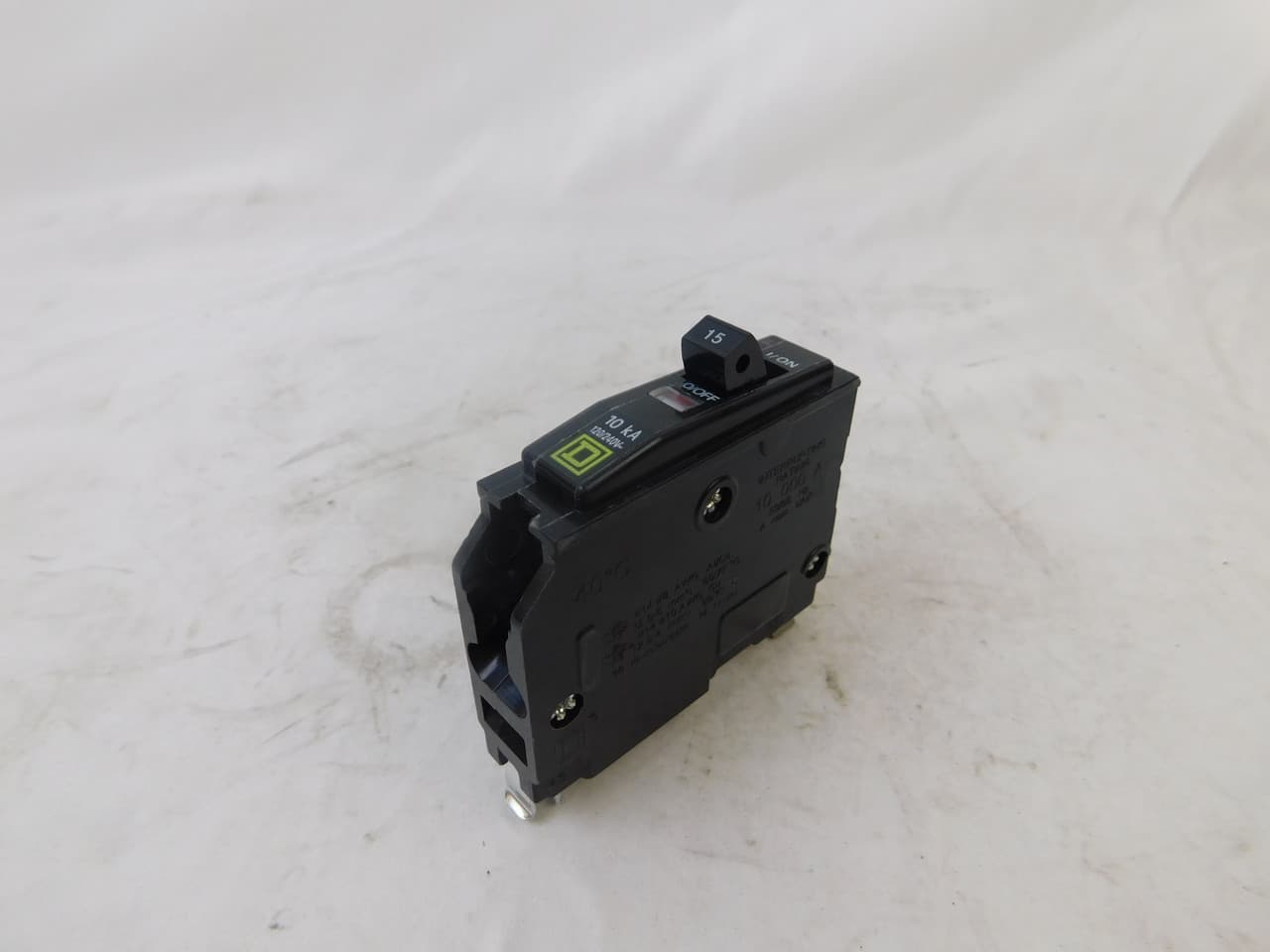

Square D by Schneider Electric QO115 is a Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a plug-in connection type and is suitable for a single cable of aluminum or copper ranging from 14-8AWG. This MCB is rated for a current of 15A and can operate at a rated voltage of 120V to 240V AC or 48V DC. It is a single-pole breaker with a short circuit breaking rating of 10kA at 240V AC and 5kA at 48V DC. The terminals are of the press plate type.

Product Details

  • Electrical Connection
    Pressure plate
  • Number Of Panel Spaces
    1
  • Ratings
    HACR and Switching Duty rated
  • Height
    3 in (76.20 mm)
  • Range
    QO
  • Product
    Miniature circuit-breaker
  • Mounting Type
    Plug-in
  • Width
    0.75 in (19.05 mm)
  • Circuit Breaker Type
    Standard
  • Depth
    2.91 in (73.91 mm)
  • Current Rating
    15 A
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Number Of Poles
    1P
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
  • Shipping Width:
    3.20 In.
  • Size:
    0.75 Inch Width x 2.91 Inch Depth x 2.99 Inch Height
  • Type:
    Thermal Magnetic
  • Used On:
    QO Load Center
  • Terminal Type:
    Pressure Plate
  • Series:
    QO
  • Volts:
    120/240 VAC 50/60 Hertz
  • Wire Size:
    14 to 8 AWG (Copper/Aluminum)
  • Shipping Length:
    7.70 In.
  • Mounting:
    Plug-In
  • Approval:
    UL
  • Interrupting Rating:
    5/10 Kiloamp
  • Amps:
    32 A
  • UPC:
    785901400066
  • Poles:
    1
  • Shipping Weight:
    2.82
  • Shipping Height:
    3.50 In.
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC
  • Voltage Rating
    120/240 V AC 120 V AC 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO115 on Powermatic Associates is $29.10. Order now.
