QO130L200PG Schneider Electric Industrial Automation Components

QO130L200PG on Powermatic Associates
Schneider Electric

Part#:QO130L200PG

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

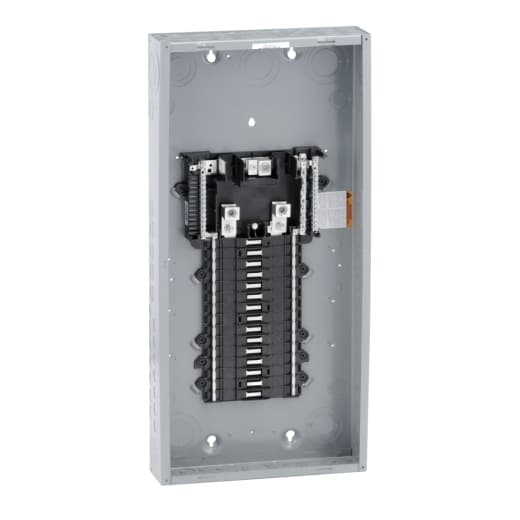

Square D by Schneider Electric QO130L200PG is a load center designed for single-phase (1PH-3W) networks, with a rated voltage of 120Vac/240Vac and a rated current of 200A. It features a QOM1 frame size and supports Plug-on-Neutral (PoN) connections. The load center offers 30 spaces for single pole circuits, accommodating cross-sections from 6AWG to 250kcmil for both aluminium and copper lugs. Its connection type is lugs, and it has a short circuit breaking rating of 65kA. The QO130L200PG is housed in a welded sheet steel enclosure with a NEMA 1 degree of protection and includes a tin-plated copper busbar. The dimensions of the load center are H758mm x W362mm (H29.84" x W14.25").

Product Details

  • Marketing Trade Name
    QO
  • Number Of Phases
    1 phase
  • Width
    14.25 in (362 mm)
  • Number Of Spaces
    30
  • Electrical Connection
    Lugs
  • Rated Current
    200 A
  • Wire Size
    AWG 6...250 kcmil aluminium/copper
  • Surface Finish
    Baked enamel Gray
  • Busbar Material
    Tin plated copper busbar
  • Max Short Circuit Current Rating
    65 kA
  • Box Number
    9
  • Load Center Type
    Main lugs
  • Voltage Rating
    120/240 V AC
  • Wiring Configuration
    3-wire
  • Maximum Number Of Single Pole Circuits
    40
  • Enclosure Material
    Welded sheet steel
  • Cover Type
    Order separately
  • Maximum Number Of Tandem Breakers
    10
  • Height
    29.84 in (758 mm)
  • Product Type
    Load Center
  • Ground Bar
    Grounding bar included (not installed)
  • Tightening Torque
    Main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper Main lugs 250 lb.in, AWG 4...300 kcmil, aluminium/copper Cover 20 lb.in

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO130L200PG on Powermatic Associates is $644.76. Order now.

QO130L200PG Related Documents

Instruction Sheet-1631032965132.pdfProduct Datasheet-1631032965101.pdfCatalog-1631032965113.pdf
