QO130M200PRB Schneider Electric Industrial Automation Components

QO130M200PRB on Powermatic Associates
Schneider Electric

Part#:QO130M200PRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

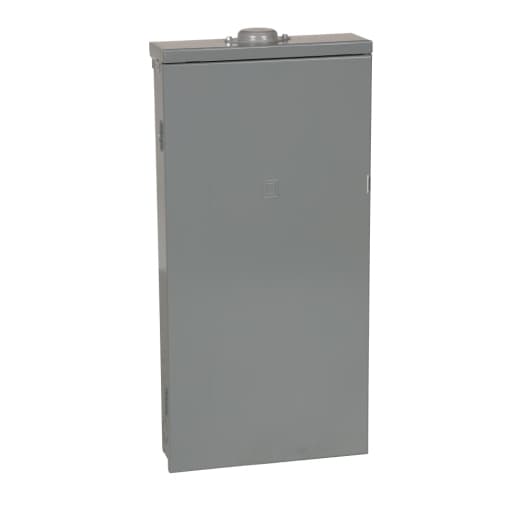

Square D by Schneider Electric QO130M200PRB is a load center designed for surface mounting with a main function of serving as a Load Center (LC) with a QOM1 frame size and Plug-on-Neutral (PoN) feature. It has a rated current of 200A and utilizes lugs for its connection type. The dimensions of this load center are H758mm x W375mm (H29.84" x W14.76"), offering 30 spaces for circuits. It is protected by a NEMA 3R degree of protection and is constructed from welded galvannealed steel for the enclosure and tin-plated copper for the busbar. This product is suitable for a single-phase (1PH-3W) network with a rated voltage of 120Vac/240Vac. It can accommodate up to 30 single pole circuits with a cross-section range for aluminium and copper lugs from 4AWG to 250kcmil. Additionally, it has a short circuit breaking rating of 22kA.

Product Details

  • Rated Current
    200 A
  • Wiring Configuration
    3-wire
  • Maximum Number Of Tandem Breakers
    10
  • Marketing Trade Name
    QO
  • Enclosure Type
    Weatherproof enclosure
  • Wire Size
    AWG 4...250 kcmil aluminium/copper
  • Box Number
    6R
  • Load Center Type
    Main breaker
  • Ground Bar
    Grounding bar (ordered separately)
  • Width
    14.76 in (375 mm)
  • Cover Type
    Surface cover
  • Number Of Phases
    1 phase
  • Height
    29.84 in (758 mm)
  • Product Type
    Load Center
  • Busbar Material
    Tin plated copper busbar
  • Max Short Circuit Current Rating
    22 kA
  • Electrical Connection
    Lugs
  • Maximum Number Of Single Pole Circuits
    40
  • Enclosure Material
    Welded galvannealed steel
  • Number Of Spaces
    30
  • Surface Finish
    Baked enamel Gray

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO130M200PRB on Powermatic Associates is $1,344.00. Order now.
