QO140 Schneider Electric Industrial Automation Components

QO140 on Powermatic Associates
Schneider Electric

Part#:QO140

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

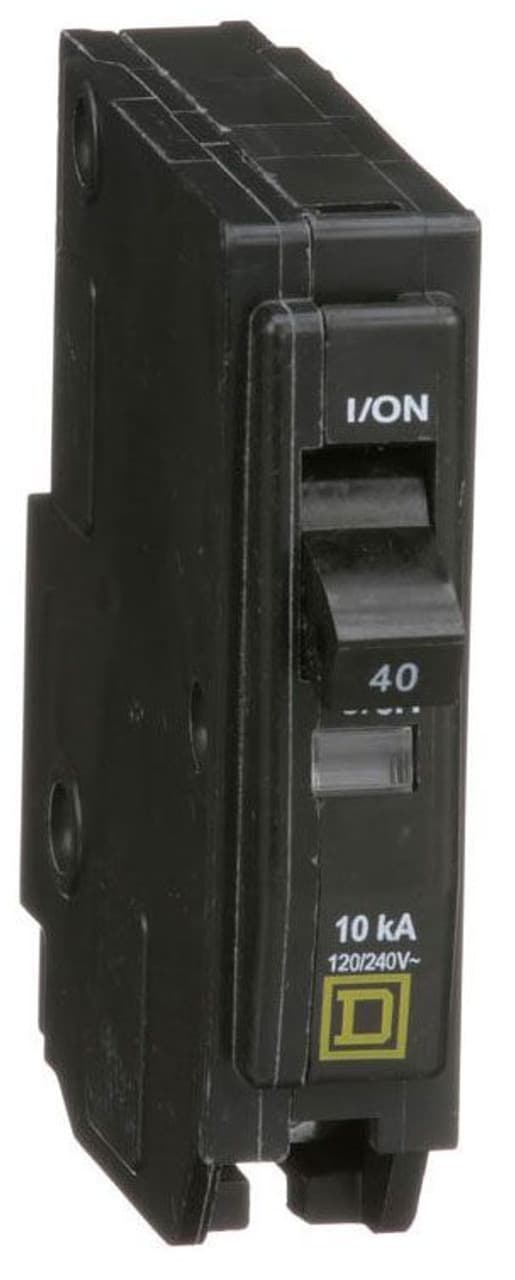

Square D by Schneider Electric QO140 is a Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a plug-in connection type and is equipped with box lugs terminals. This MCB is rated for a current of 40A and can accommodate a wire cross-section of 8-2AWG for one aluminum or copper cable. It is a single-pole device with a rated voltage of 120V to 240V AC and 48V DC. The QO140 offers a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc.

Product Details

  • Height
    3.12 in (79.25 mm)
  • Number Of Poles
    1P
  • Current Rating
    40 A
  • Number Of Panel Spaces
    1
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
  • Mounting Type
    Plug-in
  • Electrical Connection
    Box lugs
  • Circuit Breaker Type
    Standard
  • Width
    0.75 in (19.05 mm)
  • Ratings
    HACR rated
  • Product
    Miniature circuit-breaker
  • Depth
    2.91 in (73.91 mm)
  • Range
    QO
  • Wire Size
    AWG 8...AWG 2 copper or aluminium
  • Shipping Height:
    3.00 In.
  • Shipping Width:
    1.00 In.
  • Shipping Length:
    3.00 In.
  • TS PIK:
    123180738
  • Shipping Weight:
    0.30 lbs.
  • UPC:
    78590140018
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC
  • Voltage Rating
    120/240 V AC 120 V AC 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO140 on Powermatic Associates is $29.10. Order now.
