QO1816M200FTRB Schneider Electric Industrial Automation Components

QO1816M200FTRB on Powermatic Associates
Schneider Electric

Part#:QO1816M200FTRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

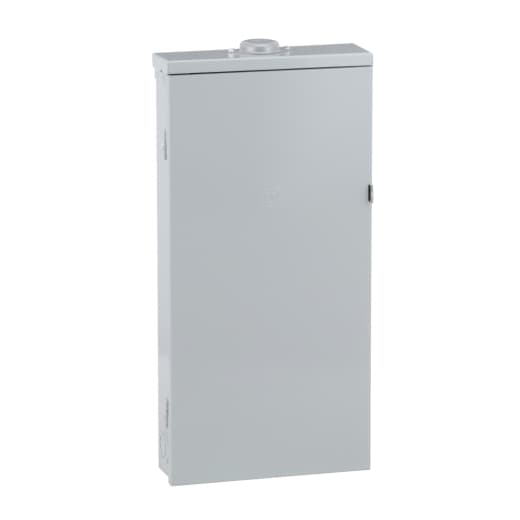

Square D by Schneider Electric QO1816M200FTRB is a load center designed for surface mounting with a main function to serve as a load center within a QOM1 frame size. It has a rated current of 200A and utilizes feed-thru lugs for its connection type. The dimensions of this load center are H758mm x W375mm (H29.84" x W14.76"), featuring 8-spaces. It is protected by a NEMA 3R degree of protection and is constructed from welded galvannealed steel for the enclosure and tin-plated copper for the busbar. This product is suitable for a single-phase (1PH-3W) network with a rated voltage of 120Vac/240Vac. It can accommodate 16 single pole circuits or 8 tandem breakers. The cross-section compatibility includes 4AWG to 250kcmil for both aluminium and copper lugs. Additionally, it has a short circuit breaking rating of 22kA.

Product Details

  • Rated Current
    200 A
  • Height
    29.84 in (758 mm)
  • Load Center Type
    Main breaker
  • Maximum Number Of Single Pole Circuits
    16
  • Maximum Number Of Tandem Breakers
    8
  • Enclosure Material
    Welded galvannealed steel
  • Number Of Phases
    1 phase
  • Busbar Material
    Tin plated copper busbar
  • Marketing Trade Name
    QO
  • Enclosure Type
    Weatherproof enclosure
  • Max Short Circuit Current Rating
    22 kA
  • Wiring Configuration
    3-wire
  • Ground Bar
    Grounding bar (ordered separately)
  • Cover Type
    Surface cover
  • Voltage Rating
    120/240 V AC
  • Box Number
    6R
  • Product Type
    Load Center
  • Number Of Spaces
    8
  • Surface Finish
    Baked enamel Gray
  • Wire Size
    AWG 4...250 kcmil aluminium/copper
  • Width
    14.76 in (375 mm)
  • Electrical Connection
    Feed-thru lugs

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO1816M200FTRB on Powermatic Associates is $863.00. Order now.

QO1816M200FTRB Related Documents

Catalog-1631038834402.pdfInstruction Sheet-1631038834407.pdfProduct Datasheet-1631038834409.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
MGN61508 on Powermatic Associates

MGN61508

Schneider Electric

Schneider Electric MGN61508 is a Miniature Circuit Breaker (MCB) designed for DC applications. It falls under the C60H-DC sub-range and features a rated current of 10A with a rated voltage of 250V DC. This MCB is equipped with 1 pole that is protected and utilizes a C tripping curve.

32 in stock
M9F43306 on Powermatic Associates

M9F43306

Schneider Electric

Schneider Electric M9F43306 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed for three-phase applications with a 3 Pole configuration. It has a rated current of 6A and offers a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It features a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it utilizes a D tripping curve.

2 in stock
M9F42206 on Powermatic Associates

M9F42206

Schneider Electric

Schneider Electric M9F42206 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed to provide circuit protection. This MCB features a 2-pole configuration and is rated for a current of 6A. It is equipped with a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC rated voltage of 240V phase-to-neutral and 415V phase-to-phase. The M9F42206 has a rated impulse voltage (Uimp) of 6kV and offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. Both poles are protected, and it features a C tripping curve. This MCB is compliant with UL489 standards.

8 in stock

Manufacturer warranty

QO1816M200FTRB Schneider Electric

$863.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$863.00

$863.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare QO1816M200FTRB with other Industrial Automation Components products

Rated Current

Height

Load Center Type

Maximum Number Of Single ...

Maximum Number Of Tandem ...

Enclosure Material

Number Of Phases

Busbar Material

Marketing Trade Name

Enclosure Type

Selected product

QO1816M200FTRB
Backordered
QO1816M200FTRB
Schneider Electric

Square D by Schneider Electric QO1816M200FTRB is a load center designed for surface mounting with a ...

Rated Current200 A

Height29.84 in (758 mm)

Load Center TypeMain breaker

Maximum Number Of Single Pole Circuits16

Maximum Number Of Tandem Breakers8

Enclosure MaterialWelded galvannealed steel

Number Of Phases1 phase

Busbar MaterialTin plated copper busbar

Marketing Trade NameQO

Enclosure TypeWeatherproof enclosure

PK9GTA
1 in stock
PK9GTA
Schneider Electric

Square D by Schneider Electric PK9GTA is a lock kit designed for locking mechanisms within electrica...

Rated Current-

Height-

Load Center Type-

Maximum Number Of Single Pole Circuits-

Maximum Number Of Tandem Breakers-

Enclosure Material-

Number Of Phases-

Busbar Material-

Marketing Trade Name-

Enclosure Type-

221608
58 in stock
221608
Lapp

221608 Lapp - ÖLFLEX TRAY II 8G1.5 16/8C

Rated Current-

Height-

Load Center Type-

Maximum Number Of Single Pole Circuits-

Maximum Number Of Tandem Breakers-

Enclosure Material-

Number Of Phases-

Busbar Material-

Marketing Trade Name-

Enclosure Type-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

Relevant products

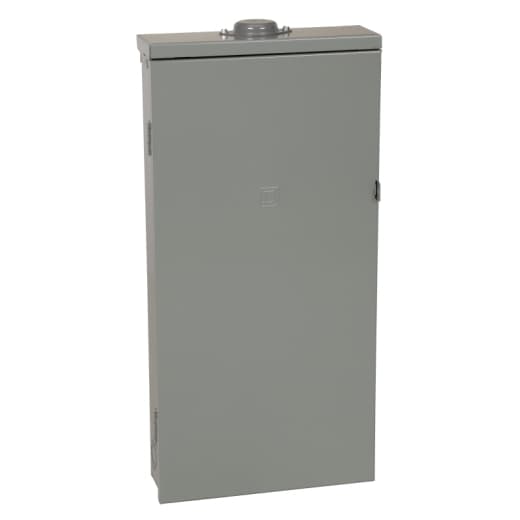

QO1816M150FTRB on Powermatic Associates
