QO2100BNRB Schneider Electric Industrial Automation Components

QO2100BNRB on Powermatic Associates
Schneider Electric

Part#:QO2100BNRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

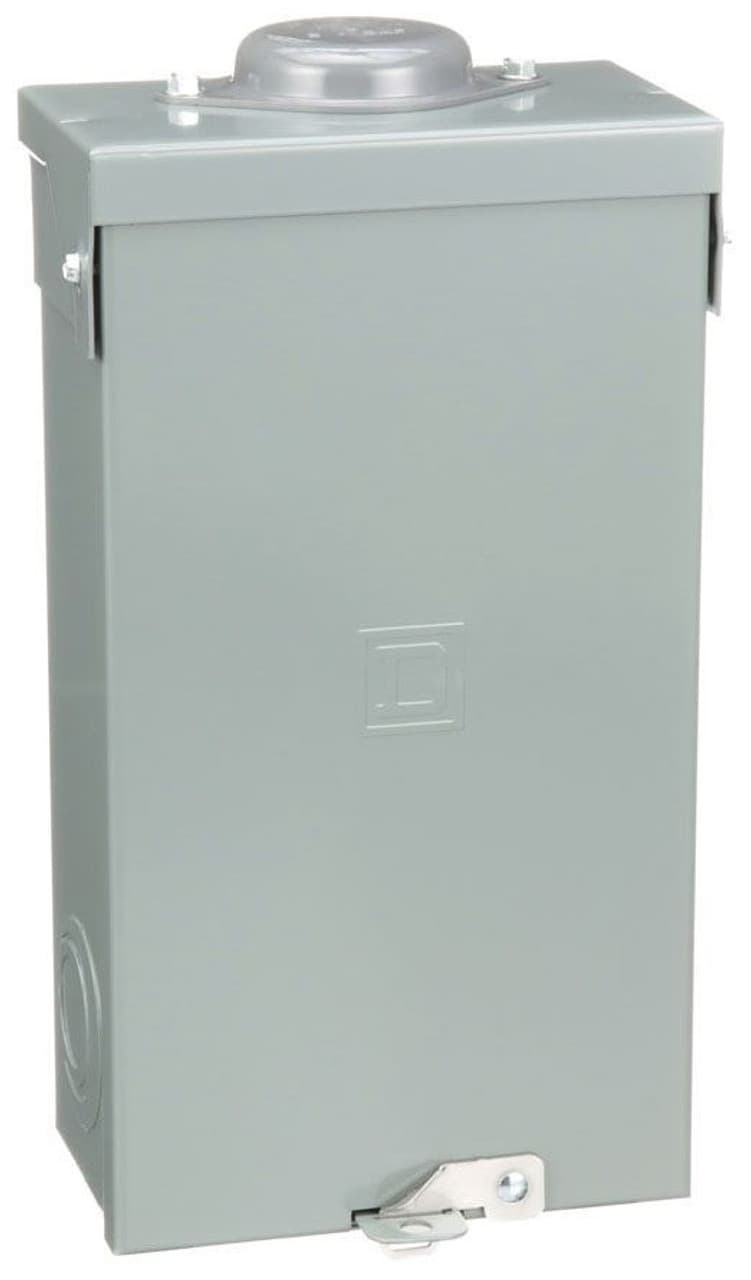

Square D by Schneider Electric QO2100BNRB is a load center designed for surface mounting with a rated current of 100A. It features dimensions of H335mm x W176mm (H13.19" x W6.93") and accommodates 2 single pole circuits within its 2 spaces. The enclosure is made from welded galvannealed steel, and the busbar from tin-plated copper, ensuring durability and conductivity. This load center is equipped with a NEMA 3R degree of protection, suitable for outdoor use. It has a short circuit breaking rating of 22kA, indicating its capability to interrupt high fault currents.

Product Details

  • Product Type
    Enclosure
  • Surface Finish
    Baked enamel Gray
  • Wire Size
    AWG 14...AWG 1 copper
  • Number Of Spaces
    2
  • Marketing Trade Name
    QO
  • Wiring Configuration
    3-wire
  • Maximum Number Of Tandem Breakers
    0
  • Width
    6.93 in (176 mm)
  • Max Short Circuit Current Rating
    22 kA
  • Electrical Connection
    Lugs
  • Maximum Number Of Single Pole Circuits
    2
  • Busbar Material
    Tin plated copper busbar
  • Rated Current
    100 A
  • Enclosure Material
    Welded galvannealed steel
  • Number Of Phases
    1 phase
  • Box Number
    10R
  • Enclosure Type
    Weatherproof enclosure
  • Ground Bar
    Grounding bar (ordered separately)
  • Height
    13.19 in (335 mm)
  • UPC:
    785901051749
  • Shipping Weight:
    8.30 lbs.
  • Shipping Length:
    15.00 In.
  • Shipping Width:
    8.00 In.
  • TS PIK:
    111081321
  • Shipping Height:
    5.00 In.
  • Tightening Torque
    35 lb.in, AWG 14...AWG 10, copper 35 lb.in, AWG 12...AWG10, aluminium 40 lb.in, AWG 8...AWG 4, aluminium/copper 50 lb.in, AWG 3...AWG 2, aluminium/copper Main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO2100BNRB on Powermatic Associates is $135.00. Order now.
