QO215GFI Schneider Electric Industrial Automation Components

QO215GFI on Powermatic Associates
Schneider Electric

Part#:QO215GFI

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

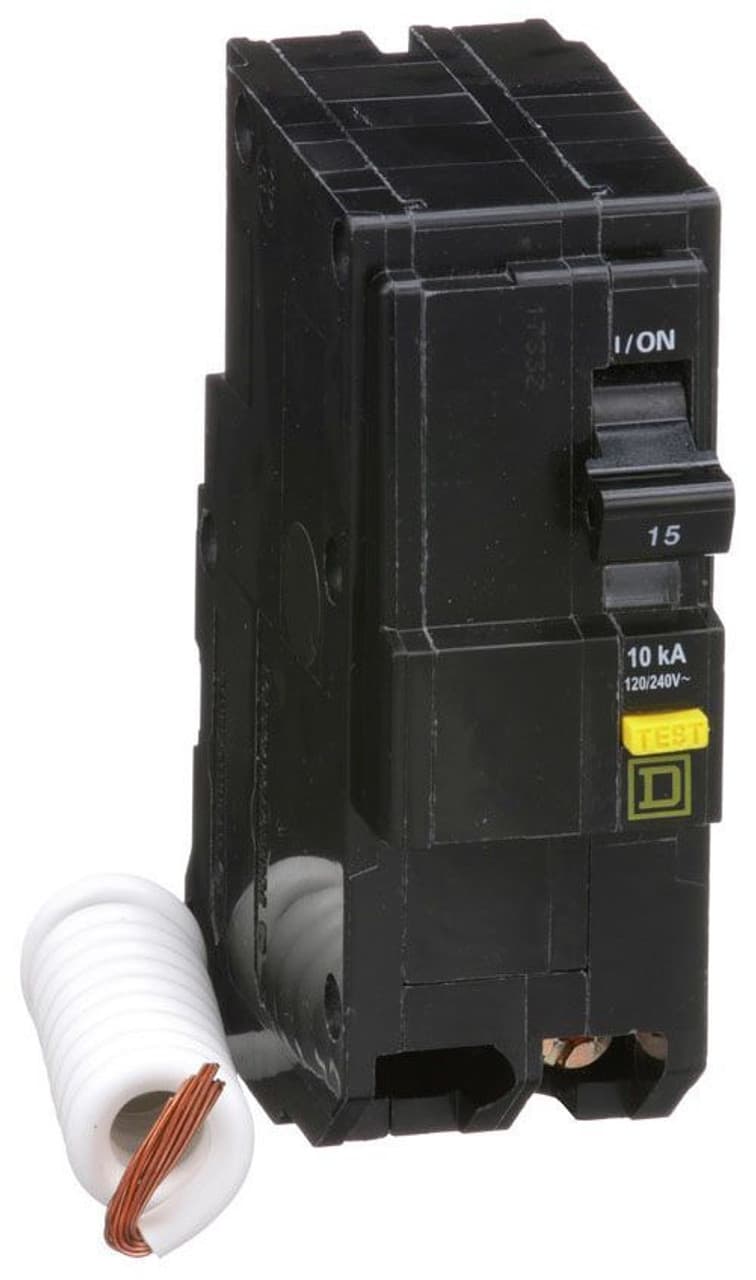

Square D by Schneider Electric QO215GFI is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a rated current of 15A and accommodates a plug-in connection type. This MCB operates at a rated voltage of 120V to 240V and is compatible with wire cross-sections ranging from 14-8AWG (1 cable Cu). It is a 2 Pole device with a residual current sensitivity of 6mA / 0.006. The QO215GFI offers ground fault protection and has a short circuit breaking rating of 10kA at 240Vac. Its terminals are of the press plate type.

Product Details

  • Product
    Miniature circuit-breaker
  • Electrical Connection
    Pressure plate
  • Height
    4.12 in (104.65 mm)
  • Ratings
    Not rated
  • Number Of Poles
    2P
  • Depth
    2.91 in (73.91 mm)
  • Number Of Panel Spaces
    2
  • Circuit Breaker Type
    Ground fault protecting class A 6 mA
  • Mounting Type
    Plug-in
  • Range
    QO
  • Current Rating
    15 A
  • Width
    1.5 in (38.10 mm)
  • UPC:
    78590156298
  • Shipping Length:
    6.00 In.
  • Shipping Height:
    2.00 In.
  • TS PIK:
    109595290
  • Shipping Weight:
    0.95 lbs.
  • Shipping Width:
    4.00 In.
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz
  • Wire Size
    AWG 14...AWG 8 copper AWG 12...AWG 8 aluminium
  • Voltage Rating
    120/240 V AC 120 V AC
  • Tightening Torque
    40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14) 40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO215GFI on Powermatic Associates is $413.00. Order now.

QO215GFI Related Documents

Instruction Sheet-1631035843665.pdfCatalog-1631035843697.pdfProduct Datasheet-1631035843669.pdf
