QO215SWN Schneider Electric Industrial Automation Components

QO215SWN on Powermatic Associates
Schneider Electric

Part#:QO215SWN

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

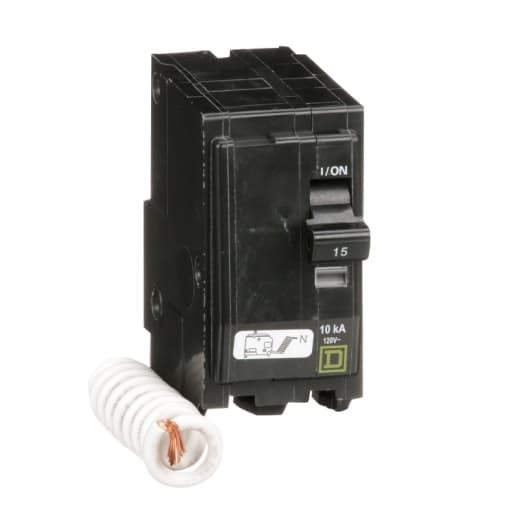

Square D by Schneider Electric QO215SWN is a switch-neutral Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a rated current of 15A and a plug-in connection type, suitable for use with a rated voltage of 120 V AC. This MCB accommodates a cross-section of 14-8AWG for 1 cable Al/Cu and is equipped with 2 poles. It has a short circuit breaking rating of 10kA at 120Vac and utilizes press plate type terminals for connections.

Product Details

  • Product
    Miniature circuit-breaker
  • Interrupt Rating
    10 kA 120 V AC 50/60 Hz
  • Current Rating
    15 A
  • Depth
    2.91 in (73.91 mm)
  • Number Of Poles
    2P
  • Circuit Breaker Type
    Switch neutral
  • Number Of Panel Spaces
    2
  • Voltage Rating
    120 V AC
  • Range
    QO
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Mounting Type
    Plug-in
  • Width
    1.5 in (38.10 mm)
  • Ratings
    Not rated
  • Height
    3 in (76.20 mm)
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Electrical Connection
    Pressure plate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO215SWN on Powermatic Associates is $95.00. Order now.
