QO230VH Schneider Electric Industrial Automation Components

QO230VH on Powermatic Associates
Schneider Electric

Part#:QO230VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

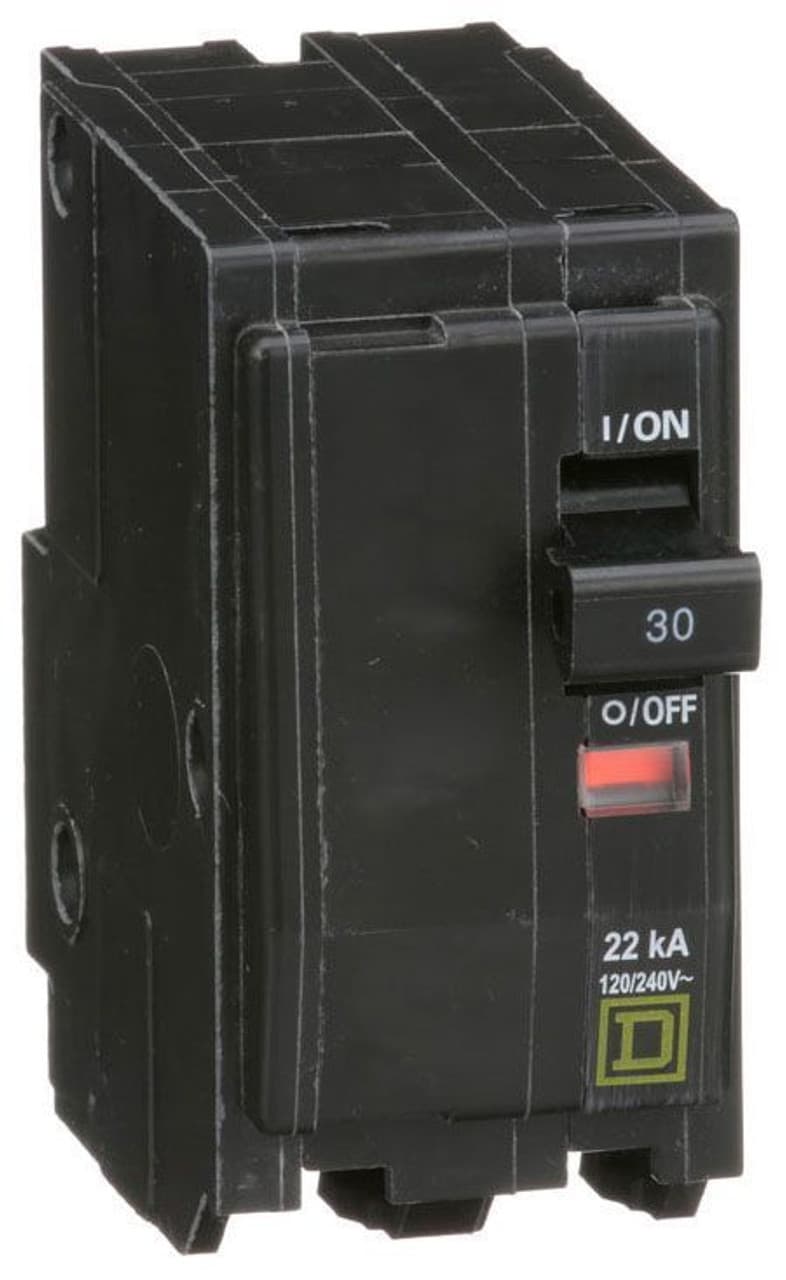

Square D by Schneider Electric QO230VH is a Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a rated current of 30A and accommodates a plug-in connection type. This MCB operates at a rated voltage of 120V to 240V and is compatible with a cross-section of 14-8AWG for 1 cable Al/Cu. It is a 2 Pole circuit breaker with a short circuit breaking rating of 22kA at 240Vac. The terminals are of the press plate type.

Product Details

  • Range
    QO
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Circuit Breaker Type
    Standard
  • Number Of Panel Spaces
    2
  • Electrical Connection
    Pressure plate
  • Ratings
    HACR rated
  • Depth
    2.91 in (73.91 mm)
  • Current Rating
    30 A
  • Mounting Type
    Plug-in
  • Product
    Miniature circuit-breaker
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Number Of Poles
    2P
  • Height
    3 in (76.20 mm)
  • Width
    1.5 in (38.10 mm)
  • Shipping Width:
    4.00 In.
  • Shipping Length:
    4.00 In.
  • Shipping Weight:
    0.60 lbs.
  • TS PIK:
    21032371
  • Shipping Height:
    2.00 In.
  • UPC:
    78590137184
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz
  • Voltage Rating
    120/240 V AC 120 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO230VH on Powermatic Associates is $146.00. Order now.
