QO327M100RB Schneider Electric Industrial Automation Components

QO327M100RB on Powermatic Associates
Schneider Electric

Part#:QO327M100RB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

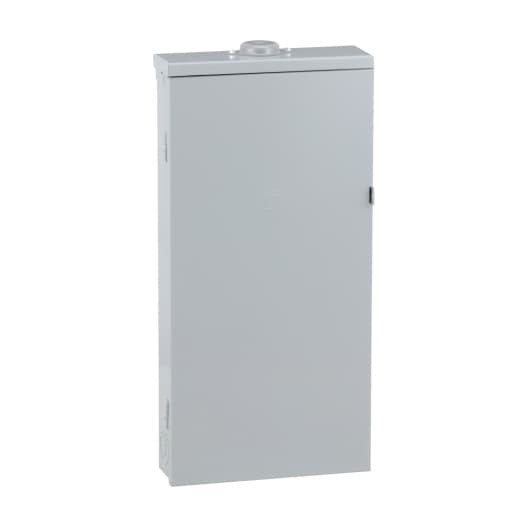

Square D by Schneider Electric QO327M100RB is a load center designed for surface mounting with a rated current of 100A. It features a connection type of lugs and dimensions of H758mm x W375mm (H29.84" x W14.76"), offering 27 spaces for single pole circuits. This load center is built with a welded galvannealed steel enclosure and tin-plated copper busbar, ensuring compatibility with a three-phase (3PH-3W/4W) network and a rated voltage of 120Vac/240Vac. It accommodates wire cross-sections from 4AWG to 2/0AWG for both aluminium and copper lugs. The QO327M100RB is designed to provide a degree of protection rated at NEMA 3R and has a short circuit breaking rating of 25kA.

Product Details

  • Product Type
    Load Center
  • Electrical Connection
    Lugs
  • Box Number
    6R
  • Marketing Trade Name
    QO
  • Enclosure Material
    Welded galvannealed steel
  • Load Center Type
    Main breaker
  • Number Of Phases
    3 phase
  • Width
    14.76 in (375 mm)
  • Number Of Spaces
    27
  • Maximum Number Of Tandem Breakers
    0
  • Surface Finish
    Baked enamel Gray
  • Enclosure Type
    Weatherproof enclosure
  • Ground Bar
    Grounding bar (ordered separately)
  • Cover Type
    Surface cover
  • Max Short Circuit Current Rating
    22 kA
  • Maximum Number Of Single Pole Circuits
    27
  • Wire Size
    AWG 4...AWG 2/0 aluminium/copper
  • Busbar Material
    Tin plated copper busbar
  • Rated Current
    100 A
  • Height
    29.84 in (758 mm)
  • Wiring Configuration
    4-wire 3-wire
  • Voltage Rating
    208Y/120 V AC 240/120 V delta AC 240 V delta AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO327M100RB on Powermatic Associates is $1,185.00. Order now.
