QO330L200GRB Schneider Electric Industrial Automation Components

QO330L200GRB on Powermatic Associates
Schneider Electric

Part#:QO330L200GRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

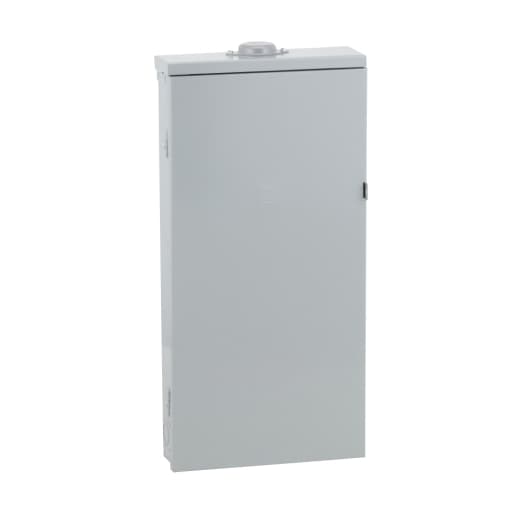

Square D by Schneider Electric QO330L200GRB is a load center designed for surface mounting with a rated current of 200A and a connection type featuring lugs. It measures H758mm x W375mm (H29.84" x W14.76") and offers 30 spaces for single pole circuits. This load center is built with a welded galvannealed steel enclosure and tin-plated copper busbar, ensuring compatibility with both aluminium and copper lugs ranging from 6AWG to 250kcmil. It operates on a three-phase network (3PH-3W/4W) with a rated voltage of 120Vac/240Vac and has a short circuit breaking rating of 65kA. The QO330L200GRB is designed to offer a degree of protection rated at NEMA 3R.

Product Details

  • Ground Bar
    Grounding bar included (not installed)
  • Rated Current
    200 A
  • Electrical Connection
    Lugs
  • Width
    14.76 in (375 mm)
  • Load Center Type
    Main lugs
  • Product Type
    Load Center
  • Number Of Phases
    3 phase
  • Surface Finish
    Baked enamel Gray
  • Enclosure Type
    Weatherproof enclosure
  • Number Of Spaces
    30
  • Maximum Number Of Tandem Breakers
    0
  • Tightening Torque
    Main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
  • Max Short Circuit Current Rating
    65 kA
  • Busbar Material
    Tin plated copper busbar
  • Cover Type
    Surface cover
  • Maximum Number Of Single Pole Circuits
    30
  • Marketing Trade Name
    QO
  • Wire Size
    AWG 6...300 kcmil aluminium/copper
  • Enclosure Material
    Welded galvannealed steel
  • Height
    29.84 in (758 mm)
  • Box Number
    6R
  • Wiring Configuration
    3-wire 4-wire
  • Voltage Rating
    208Y/120 V AC 240/120 V delta AC 240 V delta AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO330L200GRB on Powermatic Associates is $839.00. Order now.
