Powermatic Associates Logo

QO340GFI Schneider Electric Industrial Automation Components

QO340GFI on Powermatic Associates
Schneider Electric

Part#:QO340GFI

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

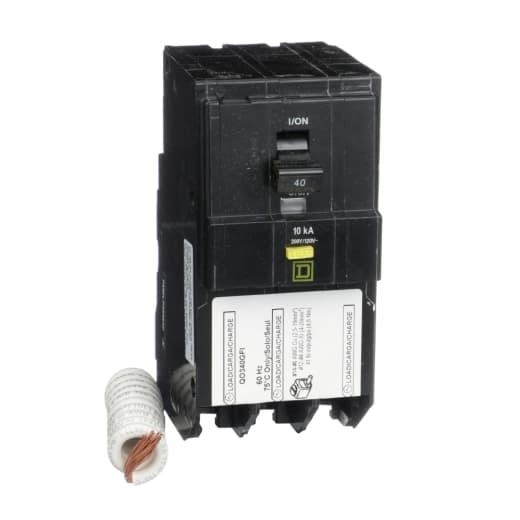

Square D by Schneider Electric QO340GFI is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a rated current of 40A and a plug-in connection type, suitable for use with a rated voltage (AC) of 208 V. The QO340GFI accommodates wires with a cross-section of 12-4AWG (1 cable Al) and is equipped with three poles. It has a residual current sensitivity of 6mA / 0.006 and offers ground fault protection. The short circuit breaking rating is specified at 10kA (120Vac) and 10kA (208Vac), with box lugs serving as the type of terminals.

Product Details

  • Mounting Type
    Plug-in
  • Number Of Panel Spaces
    3
  • Range
    QO
  • Depth
    2.91 in (73.91 mm)
  • Current Rating
    40 A
  • Ratings
    Not rated
  • Interrupt Rating
    10 kA 208Y/120 V AC 50/60 Hz
  • Voltage Rating
    208Y/120 V AC
  • Product
    Miniature circuit-breaker
  • Electrical Connection
    Box lugs
  • Width
    2.25 in (57.15 mm)
  • Number Of Poles
    3P
  • Circuit Breaker Type
    Ground fault protecting class A 6 mA
  • Height
    4.12 in (104.65 mm)
  • Tightening Torque
    40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14) 40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
  • Wire Size
    AWG 12...AWG 4 aluminium AWG 14...AWG 6 copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO340GFI on Powermatic Associates is $791.00. Order now.

QO340GFI Related Documents

Instruction Sheet-1631040024604.pdfCatalog-1631040024591.pdfProduct Datasheet-1631040024601.pdf
