QO403L60NF Schneider Electric Industrial Automation Components

QO403L60NF on Powermatic Associates
Schneider Electric

Part#:QO403L60NF

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

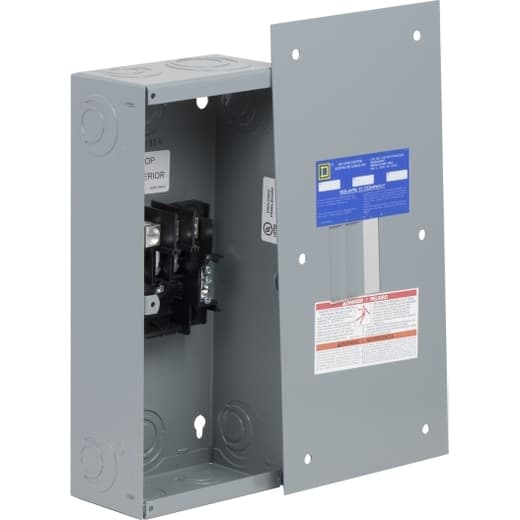

Square D by Schneider Electric QO403L60NF is a load center designed for flush mounting with a rated current of 60A. It features a connection type of lugs and dimensions of H333mm x W149mm (H13.11" x W5.87"), accommodating 3-spaces. This load center is protected by a NEMA 1 rated welded sheet steel enclosure, suitable for three-phase (3PH-3W/4W) network types with a rated voltage of 120Vac/240Vac. It supports 3 single pole circuits and is compatible with cross-sections ranging from 10AWG to 6AWG copper lugs. Additionally, it has a short circuit breaking rating of 65kA.

Product Details

  • Marketing Trade Name
    QO
  • Cover Type
    Flush cover
  • Enclosure Material
    Welded sheet steel
  • Load Center Type
    Main lugs
  • Number Of Phases
    3 phase
  • Surface Finish
    Baked enamel Gray
  • Max Short Circuit Current Rating
    65 kA
  • Electrical Connection
    Lugs
  • Rated Current
    60 A
  • Wire Size
    AWG 10...AWG 6 copper
  • Product Type
    Load Center
  • Busbar Material
    Tin plated aluminium busbar
  • Maximum Number Of Single Pole Circuits
    3
  • Ground Bar
    Neutral (factory installed)
  • Width
    5.87 in (149 mm)
  • Number Of Spaces
    3
  • Maximum Number Of Tandem Breakers
    0
  • Box Number
    13
  • Height
    13.11 in (333 mm)
  • Wiring Configuration
    4-wire 3-wire
  • Voltage Rating
    208Y/120 V AC 240/120 V delta AC 240 V delta AC
  • Tightening Torque
    Main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper Main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper Main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper Main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO403L60NF on Powermatic Associates is $107.00. Order now.
