QO612L100RB Schneider Electric Industrial Automation Components

QO612L100RB on Powermatic Associates
Schneider Electric

Part#:QO612L100RB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

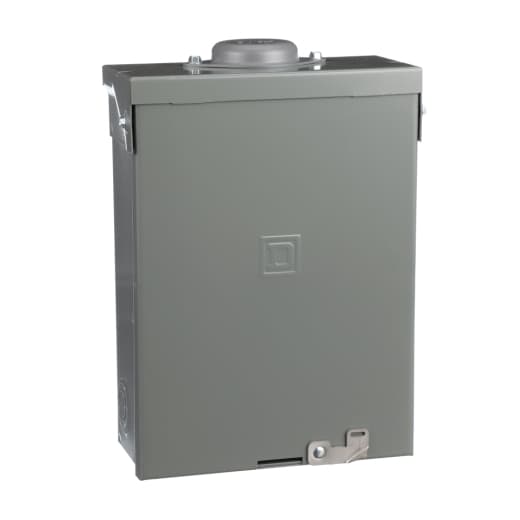

Square D by Schneider Electric QO612L100RB is a load center designed for surface mounting with a rated current of 100A and a connection type featuring lugs. It measures H321mm x W226mm (H12.64" x W8.9") and offers 6 spaces. This load center is protected by a NEMA 3R rated welded galvannealed steel enclosure and includes a tin-plated aluminum busbar. It is compatible with a single-phase (1PH-3W) network and operates at a rated voltage of 120Vac/240Vac. The QO612L100RB can accommodate up to 12 single pole circuits or 6 tandem breakers. It supports cross-sections from 8AWG to 1AWG for both aluminum and copper lugs, with a short circuit breaking rating of 10kA.

Product Details

  • Load Center Type
    Main lugs
  • Voltage Rating
    120/240 V AC
  • Surface Finish
    Baked enamel Gray
  • Rated Current
    100 A
  • Height
    12.64 in (321 mm)
  • Marketing Trade Name
    QO
  • Number Of Phases
    1 phase
  • Box Number
    2R
  • Enclosure Type
    Weatherproof enclosure
  • Maximum Number Of Tandem Breakers
    6
  • Product Type
    Load Center
  • Busbar Material
    Tin plated aluminium busbar
  • Width
    8.90 in (226 mm)
  • Max Short Circuit Current Rating
    10 kA
  • Wire Size
    AWG 8...AWG 1 aluminium/copper
  • Wiring Configuration
    3-wire
  • Number Of Spaces
    6
  • Ground Bar
    Grounding bar (ordered separately)
  • Cover Type
    Surface cover
  • Electrical Connection
    Lugs
  • Maximum Number Of Single Pole Circuits
    12
  • Enclosure Material
    Welded galvannealed steel
  • Tightening Torque
    Main lugs 50 lb.in, AWG 8, aluminium/copper Main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO612L100RB on Powermatic Associates is $143.00. Order now.

QO612L100RB Related Documents

Catalog-1631029610351.pdfInstruction Sheet-1631029610353.pdfProduct Datasheet-1631029610349.pdf
