QOB120GFI Schneider Electric Industrial Automation Components

QOB120GFI on Powermatic Associates
Schneider Electric

Part#:QOB120GFI

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

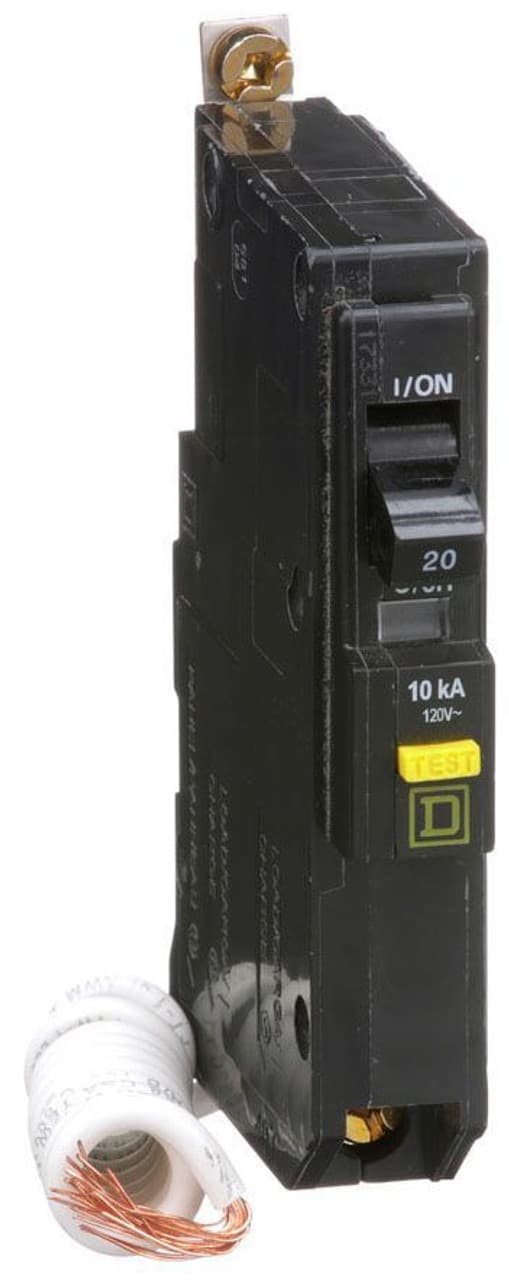

Square D by Schneider Electric QOB120GFI is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 20A with a bolt-on connection type and operates at a rated voltage of 120 V AC. This MCB accommodates a cross-section of 14-8AWG (1 cable Al/Cu) and is equipped with 1 pole. It has a residual current sensitivity of 6mA / 0.006 and offers ground fault protection. The short circuit breaking rating stands at 10kA (120Vac), and it utilizes press plate type terminals for connections.

Product Details

  • Number Of Poles
    1P
  • Number Of Panel Spaces
    1
  • Range
    QO
  • Width
    0.75 in (19.05 mm)
  • Current Rating
    20 A
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Circuit Breaker Type
    Ground fault protecting class A 6 mA
  • Product
    Miniature circuit-breaker
  • Interrupt Rating
    10 kA 120 V AC 50/60 Hz
  • Ratings
    Not rated
  • Voltage Rating
    120 V AC
  • Mounting Type
    Bolt-on
  • Depth
    2.91 in (73.91 mm)
  • Electrical Connection
    Pressure plate
  • Height
    4.12 in (104.65 mm)
  • UPC:
    78590136871
  • Shipping Weight:
    0.00 lbs.
  • Shipping Width:
    0.00 In.
  • TS PIK:
    111088219
  • Shipping Height:
    0.00 In.
  • Shipping Length:
    0.00 In.
  • Tightening Torque
    40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14) 40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOB120GFI on Powermatic Associates is $248.00. Order now.

QOB120GFI Related Documents

Instruction Sheet-1631036353441.pdfProduct Datasheet-1631036353450.pdfCatalog-1631036353459.pdf
