QOM30L Schneider Electric Industrial Automation Components

Name: QOM30L
Brand: Schneider Electric
Price: 301.5 USD
Availability: BackOrder

Part#:QOM30L

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

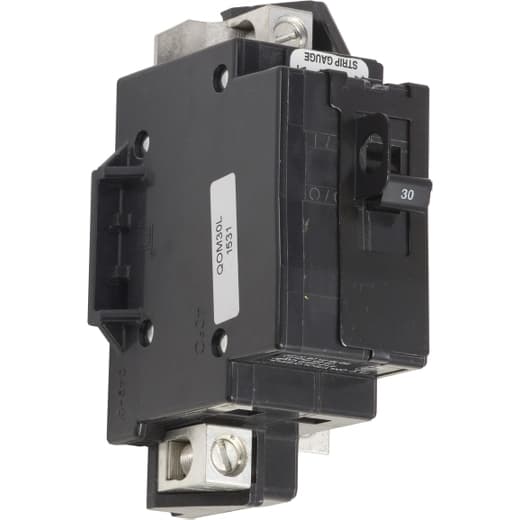

Square D by Schneider Electric QOM30L is a Miniature Circuit Breaker (MCB) designed for primary or main circuit protection. It features a bolt-on mounting mode and a bolt-on connection type, ensuring secure installation. This MCB is rated for a current of 30A and can accommodate a cable cross-section of 12-2/0AWG (1 cable Al/Cu), making it versatile for various wiring needs. It operates at a rated voltage of 120V to 240V AC and is equipped with two poles. The QOM30L has a short circuit breaking rating of 10kA at 240Vac and utilizes lugs as its type of terminals, facilitating straightforward and efficient wire connections.

Product Details

Circuit Breaker Type
Standard
Load Center Type
Main breaker
For Use With
QO load center
Electrical Connection
Lugs
Tightening Torque
53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0)
Product
Circuit breaker
Current Rating
30 A
Mounting Type
Bolt-on
Frame Size
QOM1
Voltage Rating
120/240 V AC
Number Of Phases
1 phase
Ratings
Primary main breaker
Interrupt Rating
10 kA 120/240 V AC 50/60 Hz
Range
QO
Number Of Poles
2P
Wire Size
AWG 12...AWG 2/0 copper or aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOM30L on Powermatic Associates is $301.50. Order now.
