QOT2020 Schneider Electric Industrial Automation Components

QOT2020 on Powermatic Associates
Schneider Electric

Part#:QOT2020

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

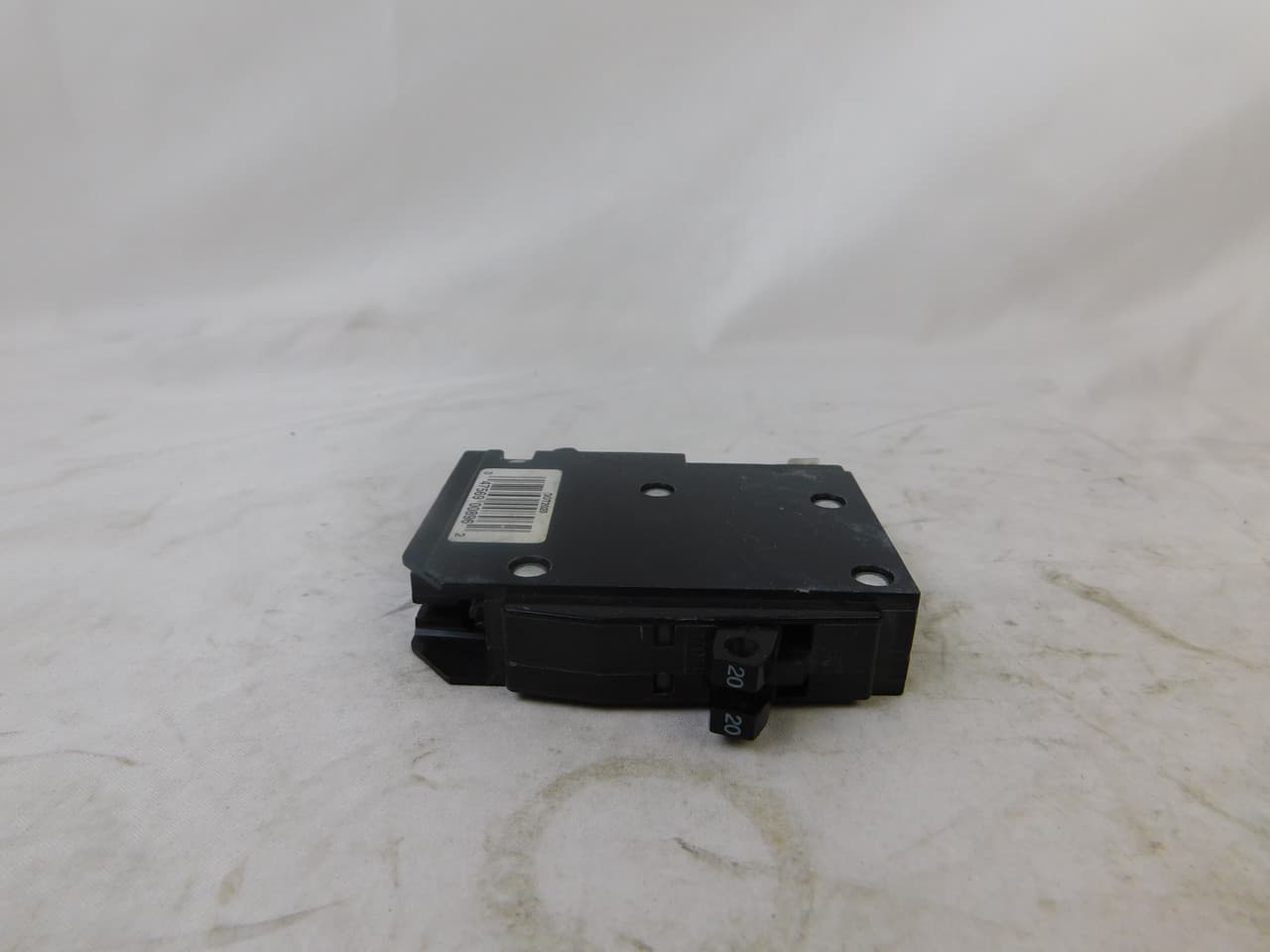

Square D by Schneider Electric QOT2020 is a Tandem Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a rated current of 20A and accommodates a plug-in connection type. This MCB operates at a rated voltage of 120 V to 240 V and is suitable for cables with a cross-section of 14-8AWG (1 cable Cu). It is a single-pole device with a short circuit breaking rating of 10kA at 240Vac. The QOT2020 utilizes press plate type terminals for secure connections.

Product Details

  • Voltage Rating
    120/240 V AC
  • Depth
    2.91 in (73.91 mm)
  • Current Rating
    20 A
  • Number Of Panel Spaces
    1
  • Ratings
    HACR rated
  • Range
    QO
  • Mounting Type
    Plug-in
  • Width
    0.75 in (19.05 mm)
  • Electrical Connection
    Pressure plate
  • Height
    3.22 in (81.79 mm)
  • Circuit Breaker Type
    Tandem
  • Product
    Miniature circuit-breaker
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz
  • Number Of Poles
    1P
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
  • Shipping Length:
    4.00 In.
  • Wire Size:
    12 to 8 AWG (Aluminum)
  • Mounting:
    Plug-In
  • Type:
    Thermal Magnetic
  • Volts:
    120/240 VAC 50/60 Hertz
  • Shipping Width:
    3.00 In.
  • Interrupting Rating:
    10 Kiloamp
  • Approval:
    UL
  • Used On:
    QO Load Center
  • Shipping Weight:
    0.30
  • Poles:
    1
  • UPC:
    785901418085
  • Amps:
    32 A
  • Shipping Height:
    1.00 In.
  • Series:
    QO
  • Size:
    0.75 Inch Width x 2.91 Inch Depth x 3.23 Inch Height
  • Terminal Type:
    Pressure Plate
  • Wire Size
    AWG 14...AWG 8 copper AWG 12...AWG 8 aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOT2020 on Powermatic Associates is $62.64. Order now.
