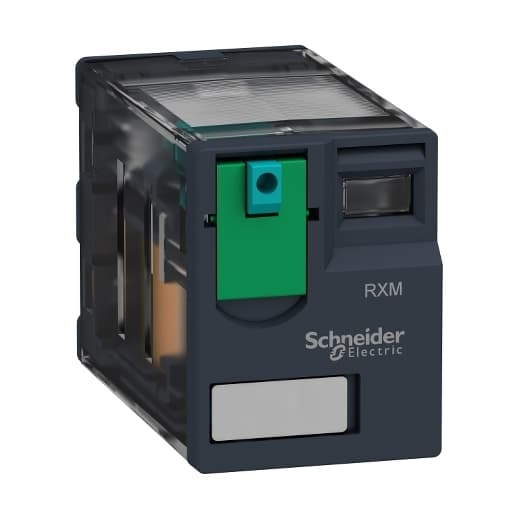

RXM4GB1BD Schneider Electric Industrial Automation Components

Product Details

• Maximum Switching Voltage
  250 V IEC
• Contacts Type And Composition
  4 C/O
• Device Short Name
  RXM
• Control Type
  Lockable test button
• Minimum Switching Capacity
  15 mW 3 mA, 5 V
• Series Name
  Miniature
• Maximum Switching Capacity
  750 VA/84 W
• Shape Of Pin
  Flat
• Mechanical Durability
  10000000 cycles
• Net Weight
  0.08 lb(US) (0.037 kg)
• Status LED
  Without
• Release Time
  20 ms
• Rated Operational Voltage Limits
  19.2...26.4 V DC
• Operating Position
  Any position
• Product Or Component Type
  Plug-in relay
• Contacts Material
  Gold plated bifurcated silver
• Electrical Durability
  100000 cycles resistive depending on mounting position and working environment
• [Uc] Control Circuit Voltage
  24 V DC
• Range Of Product
  Harmony Electromechanical Relays
• Utilisation Coefficient
  20 %
Protection Category
RT I
[Uimp] Rated Impulse Withstand Voltage
2.5 kV 1.2/50 µs
Average Coil Consumption In W
0.9 W
Drop-Out Voltage Threshold
>= 0.1 Uc
Operate Time
20 ms
Device Presentation
Complete product
[Ithe] Conventional Enclosed Thermal Current
3 A -40…131 °F (-40…55 °C)
Test Levels
Level A
Average Coil Resistance
650 Ohm 20 °C +/- 10 %
Operating Rate
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
Resistive Rated Load
3 A 250 V AC 3 A 28 V DC
[Ui] Rated Insulation Voltage
250 V IEC 300 V CSA 300 V UL
[Ie] Rated Operational Current
2 A 28 V DC) NO IEC 2 A 250 V AC) NO IEC 1 A 28 V DC) NC IEC 1 A 250 V AC) NC IEC 3 A 28 V DC) UL 3 A 277 V AC) UL
