Part#:SSL1A12BDPV

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

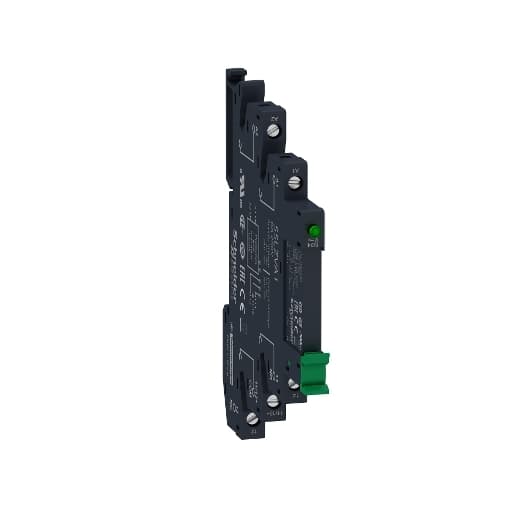

Schneider Electric - SSL1A12BDPV

Product Details

  • Output Switching Mode
    Zero voltage switching
  • Capacitance Unbalance
    1.5 pF input/output
  • Phase
    1 phase
  • Input Impedance
    3.43 kOhm
  • Mounting Support
    Screw socket
  • Product Or Component Type
    Solid state relay up to 10 A
  • Minimum Switching Voltage
    16 V DC turn-on
  • Device Short Name
    SSL
  • Maximum Voltage Drop
    <1.1 V on-state
  • Line Rated Current
    2 A
  • Depth
    3.13 in (79.5 mm)
  • Maximum Switching Voltage
    5 V DC turn-off
  • [Uc] Control Circuit Voltage
    16...30 V DC
  • Load Current
    0.07…2 A
  • Dv/Dt
    500 V/µs off-state at maximum voltage
  • Maximum Leakage Current
    4 mA off-state
  • Net Weight
    0.06 lb(US) (0.0285 kg)
  • Tansient Overvoltage
    600 V AC
  • Height
    3.80 in (96.5 mm)
  • Width
    0.24 in (6.2 mm)
  • Range Of Product
    Harmony Solid State Relays
  • Overvoltage Category
    III
  • Response Time
    0.5 cycle (turn-on) 0.5 cycle (turn-off)
  • Surge Current
    120 A 16.6 ms 115 A 20 ms
  • CLAMPING FORCE
    < 0.5 N.m 4.4 lb-in
  • Solid State Output Type
    Zero voltage switching SCR output
  • Connections - Terminals
    Flexible cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14) Solid cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14)
  • Maximum I²t For Fusing
    285 A².s for 10 ms at 50 Hz 260 A².s for 8.3 ms at 60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
