T02EN13G7 Schneider Electric Industrial Automation Components

Name: T02EN13G7
Brand: Schneider Electric
Price: 964 USD
Availability: BackOrder

Part#:T02EN13G7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

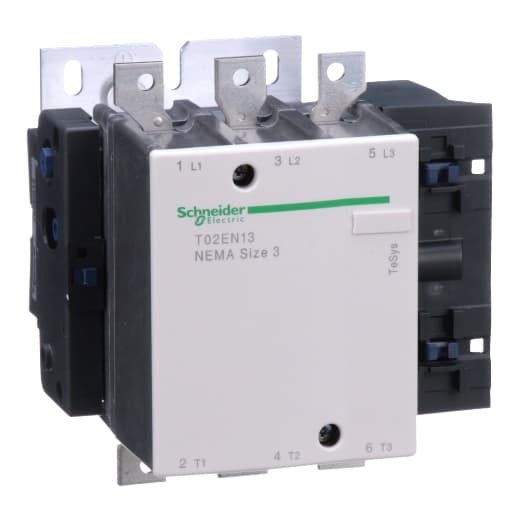

Schneider Electric - T02EN13G7

Product Details

Rated Current
90 A
Network Phases
3 phase
Height
6.38 in (162.05 mm)
Product Type
Contactor
Contactor Type
Non-reversing
Coil Volltage
120 V AC
Depth
6.68 in (169.67 mm)
Number Of Poles
3P
Width
6.44 in (163.58 mm)
Range
TeSys N
Product Weight
8.90 lb(US) (4.04 kg)
Auxiliary Contact Composition
1 NO
NEMA Size
3
Electrical Connection
Lugs ordered separately
Control Circuit
Common control circuit
[Ue] Rated Operational Voltage
600 V AC
Motor Horsepower Rating HP
25 hp 200 V AC 30 hp 230 V AC 50 hp 460 V AC 50 hp 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T02EN13G7 on Powermatic Associates is $964.00. Order now.
