U92197CCCPL Schneider Electric Industrial Automation Components

Name: U92197CCCPL
Brand: Schneider Electric
Price: 240 USD
Availability: BackOrder

Part#:U92197CCCPL

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

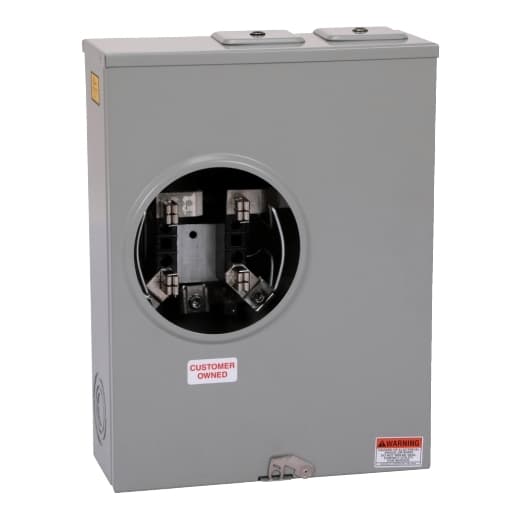

Square D by Schneider Electric U92197CCCPL is a meter center main unit designed for surface mounting. It features a single ringless meter socket with 4 jaws, without a jaw release mechanism, and does not include a bypass function. The enclosure is made of steel, ensuring durability. For connections, it utilizes lugs that accommodate 0.5" hex. The unit's dimensions are H435mm x W330mm x D125mm (H17.13" x W13" x D4.94"), with a rated current of 200A. It offers a degree of protection rated at NEMA 3R, suitable for outdoor use. The U92197CCCPL is designed for a single-phase (1PH-3W) network and can handle a maximum voltage of 600Vac.

Product Details

Number Of Jaws
4 without jaw release
Meter Socket Type
Ringless
Bypass Type
No bypass
Box Number
7R
Hub Type
A ACP closing plate
Height
17.13 in (435.10 mm)
Phase
1 phase
Meter Socket Rated Current
200 A
Width
13.00 in (330.20 mm)
[Ue] Rated Operational Voltage
600 V AC
Enclosure Material
Steel
Depth
4.94 in (125.48 mm)
Product Or Component Type
Meter Socket
Electrical Connection
Lugs 0.5" hex
Wiring Configuration
3-wire
Service Feed Location
UG OH

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
