UHTRS212B Schneider Electric Industrial Automation Components

UHTRS212B on Powermatic Associates
Schneider Electric

Part#:UHTRS212B

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

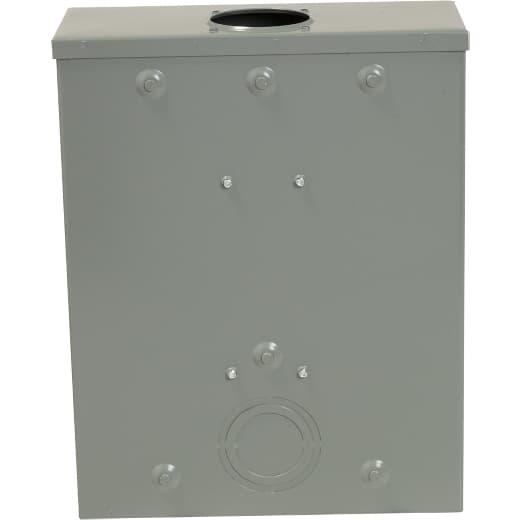

Square D by Schneider Electric UHTRS212B is a meter center main unit designed for surface mounting. It features a ringless meter socket equipped with 4 jaws without a jaw release and includes a horn bypass. The enclosure is made of steel, ensuring durability. For connections, it utilizes lugs with a 0.5" hex size. The dimensions of the UHTRS212B are H356mm x W279mm x D111mm (H14" x W11" x D4.38"). It has a rated current of 200A and offers a degree of protection rated at NEMA 3R. This unit is designed for use in single-phase (1PH-3W) networks and can handle a maximum voltage of 600Vac.

Product Details

  • Phase
    1 phase
  • Box Number
    4R
  • Number Of Jaws
    4 without jaw release
  • Hub Type
    A ACP closing plate
  • Wiring Configuration
    3-wire
  • Electrical Connection
    Lugs 0.5" hex
  • Bypass Type
    Horn bypass
  • Depth
    4.38 in (111.25 mm)
  • [Ue] Rated Operational Voltage
    600 V AC
  • Meter Socket Type
    Ringless
  • Enclosure Material
    Steel
  • Meter Socket Rated Current
    200 A
  • Width
    11.00 in (279.40 mm)
  • Product Or Component Type
    Meter Socket
  • Height
    14.00 in (355.60 mm)
  • Service Feed Location
    OH UG

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of UHTRS212B on Powermatic Associates is $206.00. Order now.
