UTRS202B Schneider Electric Industrial Automation Components

UTRS202B on Powermatic Associates
Schneider Electric

Part#:UTRS202B

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

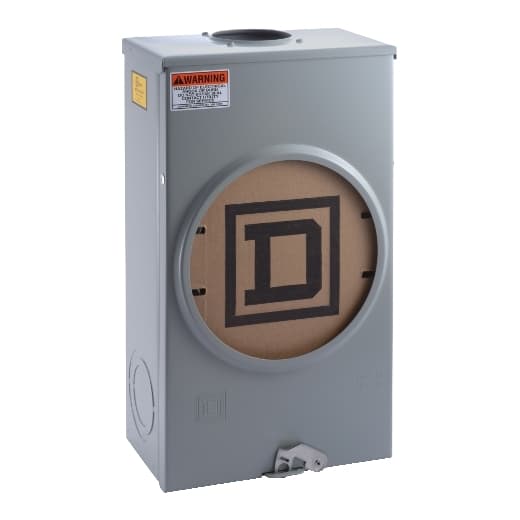

Square D by Schneider Electric UTRS202B is a meter center main unit designed for surface mounting. It features a single ringless meter socket with 4 jaws, without a jaw release mechanism, and does not include a bypass option. The enclosure is made of steel, ensuring durability. It uses lugs with a 0.5" hex connection type for secure electrical connections. The dimensions of the UTRS202B are H356mm x W203mm x D111mm (H14" x W8" x D4.38"), making it compact for its functionality. It is rated for a current of 200A and can operate at a maximum voltage of 600Vac. This unit is suitable for single-phase (1PH-3W) networks and offers a degree of protection rated at NEMA 3R, making it suitable for outdoor applications where some level of environmental protection is required.

Product Details

  • Bypass Type
    No bypass
  • Width
    8.00 in (203.20 mm)
  • Phase
    1 phase
  • Meter Socket Type
    Ringless
  • Box Number
    3R
  • [Ue] Rated Operational Voltage
    600 V AC
  • Electrical Connection
    Lugs 0.5" hex
  • Meter Socket Rated Current
    200 A
  • Wiring Configuration
    3-wire
  • Product Or Component Type
    Meter Socket
  • Depth
    4.38 in (111.25 mm)
  • Service Feed Location
    OH
  • Hub Type
    A ACP closing plate
  • Height
    14.00 in (355.60 mm)
  • Enclosure Material
    Steel
  • Number Of Jaws
    4 without jaw release

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of UTRS202B on Powermatic Associates is $177.00. Order now.
